1400 B JCB 1400 B Specifications & Technical Data (1990—1995)

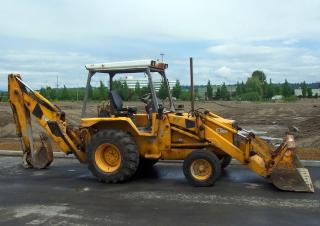

The JCB 1400 B is a backhoe loader manufactured by JCB from 1990 to 1995. It has a weight of 6.854 tons and a transport length of …

The JCB 1400 B is a backhoe loader manufactured by JCB from 1990 to 1995. It has a weight of 6.854 tons and a transport length of 7.49 meters. The bucket capacity is 0.77 cubic meters, with a dredging depth of 5.44 meters and a bucket width of 2.44 meters. The maximum discharge height is 5.89 meters, and it has a maximum reach horizontal of 6.38 meters. The travel speed of this backhoe loader is 33.2 kilometers per hour. It has a transport width of 2.44 meters and a transport height of 3.53 meters. Additionally, it is equipped with air conditioning and outrigger stabilizers.

Backhoe Loaders JCB 1400 B

Visit JCB live at

Technical specs - 1400 B JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.854 t
Standard tyres
F: 11Lx16 10PR. R: 16.9x24 10PR
Bucket width
2.44 m
Bucket capacity
0.77 m³
Drive
A
Transport length
7.49 m
Transport width
2.44 m
Transport height
3.53 m
Max. Reach horizontal
6.38 m
Dredging depth
5.44 m
Max. discharge height
5.89 m
Travel speed
33.2 km/h
Engine manuf.
Perkins
Engine type
1004 THR
Engine power
62 kW
Displacement
4 l
Revolutions at max torque
2200 rpm
Max. torque
309 Nm
No. of cylinders
4
Cylinder bore x stroke
100x127 mm

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
Yes

Download datasheets (PDF)

JCB 1400 B FAQ

When was the JCB 1400 B manufactured?

The JCB 1400 B was manufactured from 1990 to 1995.

How much does the JCB 1400 B backhoe loader weigh?

The JCB 1400 B backhoe loader weighs 6.85 tons.

What are the transport dimensions of the JCB 1400 B backhoe loader?

The JCB 1400 B has a transport length of 7.49 meters, a transport width of 2.44 meters, and a transport height of 3.53 meters.

What is the travel speed of the JCB 1400 B backhoe loader?

The JCB 1400 B backhoe loader has a travel speed of 33.2 km/h.

What are the undercarriage specifications of the JCB 1400 B backhoe loader?

The JCB 1400 B backhoe loader has an all-wheel drive system and standard tyres sized Front: 11Lx16 10PR and Rear: 16.9x24 10PR.

What are the excavation performance specifications of the JCB 1400 B backhoe loader?

The JCB 1400 B backhoe loader has a dredging depth of 5.44 meters and a maximum horizontal reach of 6.38 meters.

What is the maximum discharge height of the JCB 1400 B?

The JCB 1400 B has a maximum discharge height of 5.89 meters.

What are the specifications of the primary work tool on the JCB 1400 B backhoe loader?

The primary work tool of the JCB 1400 B backhoe loader has a bucket capacity of 0.77 cubic meters and a bucket width of 2.44 meters.

How much is a JCB 1400 B Backhoe loader (1990u20131995) worth?

The residual value of the JCB 1400 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 1400 B overview

Operator environment / station

Hard Working Backhoe

Stress-relieved boom gives high breakout and excellent down-trench visibility. Optional Extradig extending dipper, with adjustable wear pads, uses standard double pump operation to give invaluable extra reach with independent telescopic action for fast excavating times.


Engine / powertrain

High Performance Powertrain

JCB Max-Trac axles with outboard planetary reduction, self locking torque proportioning differentials and oil-immersed inboard disc brakes. The Synchro Shuttle transmission combines an integral torque converter and fully-synchronized 4-speed gearbox with an electric over hydraulic reversing shuttle for fast and smooth directional changes. Based on the first and only axles ever built specifically for backhoe loaders, the unique JCB Max-Trac axles use outboard planetary reduction and self locking torque proportioning differentials to always apply the drive power to where it’s needed most — the wheels with the best grip. In combination with the optional 4-wheel drive, and always automatically engaged, the Max-Trac system enables the machine to cope with even the most difficult site conditions and gradients, without the steering problems, prematurely worn drive shafts or excessively worn tires associated with conventional diff-lock systems. For flexible engine power, the Max-Trac system is linked to a revolutionary Perkins Quadram high efficiency combustion powerpack, precisely matched to the torque converter and weight of the machine. It combines low fuel consumption with low noise levels (further enhanced by flex mounting of the engine and transmission). Additionally, a powerful 65 amp alternator produces a high output for idling, cold climates and accessories.


Unique JCB Max-Trac Axles

Unique JCB Max-Trac axles and optional 4WD maximize traction. Inboard oil-immersed compensated hydraulic wet disc brakes. High performance Synchro Shuttle transmission combines fully-synchronized 4 speed gearbox with electric over hydraulic reversing shuttle. Reliable electrics with wrapped harness strapped in place to prevent movement and eliminate chafing.


Hydraulics

Efficient Hydraulics

JCB's exclusive double pump system with pressure sensitive offloader valve to provide optimum flow to match system pressure and keep work rates up and fuel consumption down under all conditions.
