1260 C Huddig 1260 C Specifications & Technical Data (2012—2017)

Model rating: 10,00 / 10

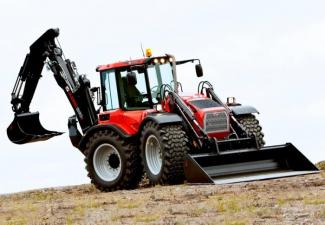

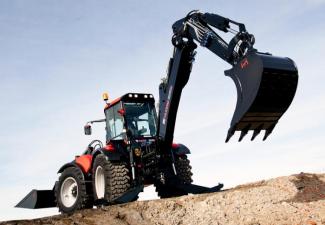

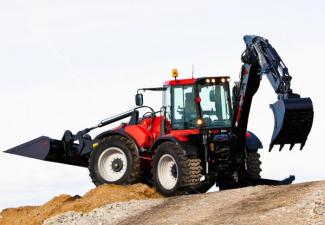

The Huddig 1260 C is a backhoe loader manufactured by Huddig from 2012 to 2017. It has a weight of 14.2 tons and a transport lengt…

The Huddig 1260 C is a backhoe loader manufactured by Huddig from 2012 to 2017. It has a weight of 14.2 tons and a transport length of 8.63 meters. The bucket capacity is 2 cubic meters, with a tear-out force of 103 kilonewtons. It can dredge up to a depth of 5 meters and has a bucket width of 3 meters. The maximum discharge height is 3.5 meters, and it can reach a maximum horizontal distance of 6.5 meters. The transport width is 2.47 meters, and the transport height is 4 meters. Special equipment includes air conditioning, forklift utility, grabber, and outrigger stabilizers.

1260 C

Years of manufacture: 2012—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1260 C Huddig

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.2 t

Standard tyres: 520/70x34

Bucket width: 3 m

Bucket capacity: 2 m³

Drive: A

Transport length: 8.63 m

Transport width: 2.47 m

Transport height: 4 m

Tear-out force: 103 kN

Max. Reach horizontal: 6.5 m

Dredging depth: 5 m

Max. discharge height: 3.5 m

Model series: 1260

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 116 kW

Displacement: 6.7 l

Revolutions at max torque: 1400 rpm

Emission level: III

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, backhoe type, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque rated speed, torque, transmission type, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, dump angle - general purpose, turning radius kerb - 4wd not braked, fuel tank, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: Yes
Grabber: Yes
Diesel particulate filter: No
Aircondition: Yes

Download datasheets (PDF)

Huddig 1260 C FAQ

When was the Huddig 1260 C manufactured?

The Huddig 1260 C was manufactured from 2012 to 2017.

How much does the Huddig 1260 C weigh?

The Huddig 1260 C weighs 14.2 tons.

What are the transport dimensions of the Huddig 1260 C backhoe loader?

The Huddig 1260 C has a transport length of 8.63 meters, a transport width of 2.47 meters, and a transport height of 4 meters.

What are the undercarriage specifications of the Huddig 1260 C backhoe loader?

The Huddig 1260 C backhoe loader has an all-wheel drive system and uses standard tyres sized 520/70x34.

What are the dredging depth and maximum horizontal reach of the Huddig 1260 C backhoe loader?

The Huddig 1260 C has a dredging depth of 5 meters and a maximum horizontal reach of 6.5 meters.

What power rating information is available for the Huddig 1260 C backhoe loader?

There is no power rating information available for the Huddig 1260 C backhoe loader in the provided data.

What is the material handling capacity of the Huddig 1260 C in terms of discharge height?

The Huddig 1260 C has a maximum discharge height of 3.5 meters.

What are the specifications of the primary work tool on the Huddig 1260 C backhoe loader?

The primary work tool of the Huddig 1260 C has a bucket capacity of 2 cubic meters and a bucket width of 3 meters.

How much is a Huddig 1260 C Backhoe loader (2012u20132017) worth?

The residual value of the Huddig 1260 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
