1060 B Huddig 1060 B Specifications & Technical Data (2008—2011)

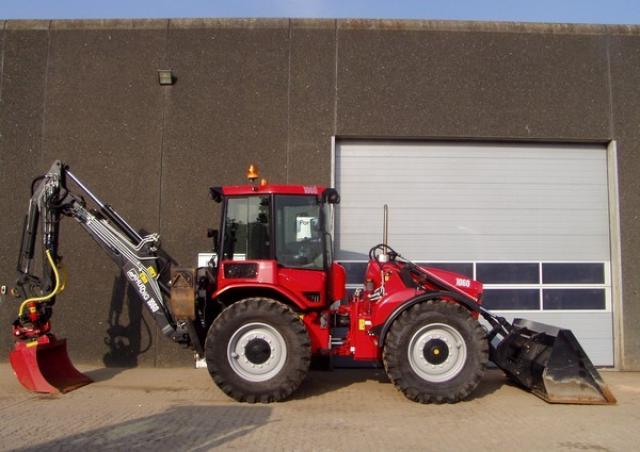

The Huddig 1060 B is a backhoe loader manufactured by Huddig from 2008 to 2011. It has a weight of 10.4 tons and a transport lengt…

The Huddig 1060 B is a backhoe loader manufactured by Huddig from 2008 to 2011. It has a weight of 10.4 tons and a transport length of 7.74 meters. The bucket capacity is 2 cubic meters, with a tear-out force of 63 kilonewtons. It can dredge up to a depth of 4.4 meters and has a bucket width of 2.3 meters. The maximum discharge height is 3.5 meters, and it can reach horizontally up to 5.95 meters. The transport width is 2.05 meters, and the transport height is 3.95 meters. It is equipped with outrigger stabilizers.

1060 B

Years of manufacture: 2008—2011

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1060 B Huddig

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.4 t

Standard tyres: 520/70x30

Bucket width: 2.3 m

Bucket capacity: 2 m³

Drive: A

Transport length: 7.74 m

Transport width: 2.05 m

Transport height: 3.95 m

Tear-out force: 63 kN

Max. Reach horizontal: 5.95 m

Dredging depth: 4.4 m

Max. discharge height: 3.5 m

Model series: 1260

Engine manuf.: Deutz

Engine type: TDC2012 L04 2V

Engine power: 93 kW

Displacement: 4.04 l

Revolutions at max torque: 1600 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, dump angle - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Huddig 1060 B FAQ

When was the Huddig 1060 B manufactured?

The Huddig 1060 B was manufactured from 2008 to 2011.

How much does the Huddig 1060 B backhoe loader weigh?

The Huddig 1060 B backhoe loader weighs 10.4 tons.

What are the transport dimensions of the Huddig 1060 B backhoe loader?

The Huddig 1060 B has a transport length of 7.74 meters, a transport width of 2.05 meters, and a transport height of 3.95 meters.

What are the undercarriage specifications of the Huddig 1060 B backhoe loader?

The Huddig 1060 B features an all-wheel drive system and standard tyres sized 520/70x30.

What is the excavation performance of the Huddig 1060 B backhoe loader?

The Huddig 1060 B backhoe loader has a dredging depth of 4.4 meters and a maximum horizontal reach of 5.95 meters.

What is the tear-out force of the Huddig 1060 B backhoe loader?

The Huddig 1060 B backhoe loader has a tear-out force of 63 kN.

What is the maximum discharge height of the Huddig 1060 B?

The Huddig 1060 B has a maximum discharge height of 3.5 meters.

What are the specifications of the primary bucket on the Huddig 1060 B backhoe loader?

The primary bucket of the Huddig 1060 B backhoe loader has a capacity of 2 cubic meters and a width of 2.3 meters.
