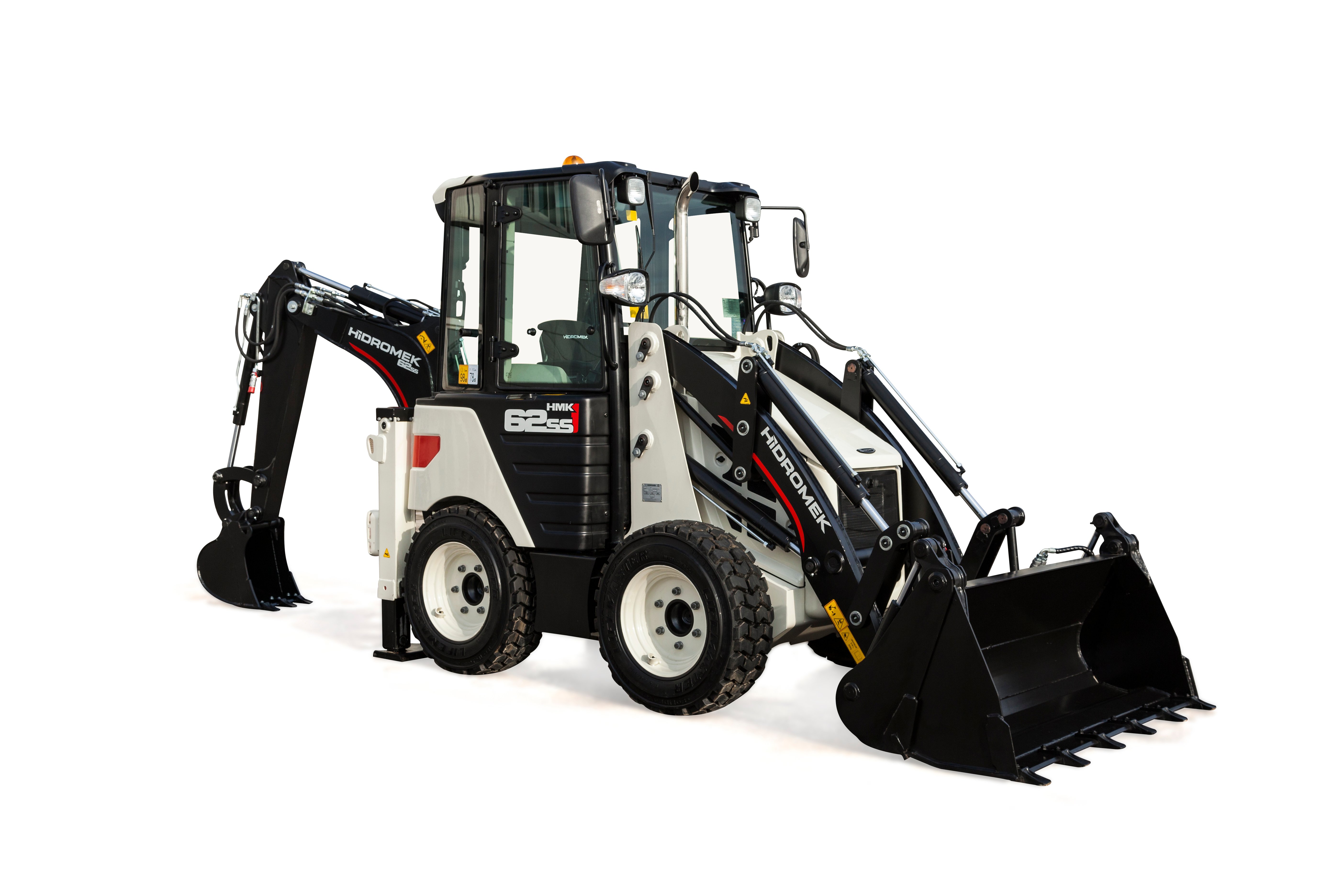

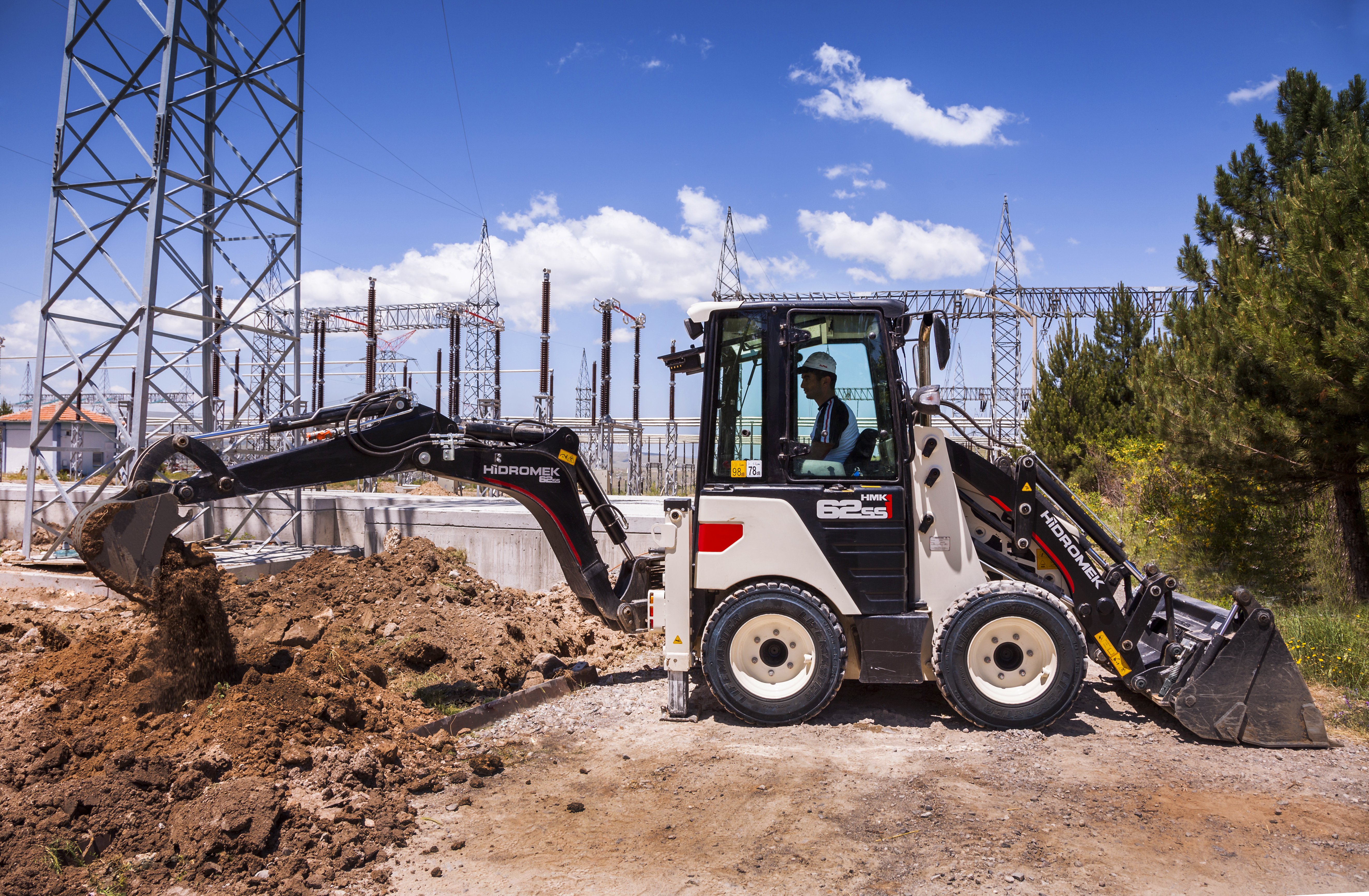

HMK 62 SS Hidromek HMK 62 SS Specifications & Technical Data (2011—2020)

The Hidromek HMK 62 SS is a backhoe loader manufactured by Hidromek from 2011 to 2020. It has a weight of 3.8 tons and a transport…

The Hidromek HMK 62 SS is a backhoe loader manufactured by Hidromek from 2011 to 2020. It has a weight of 3.8 tons and a transport length of 3.72 meters. The bucket capacity is 0.35 cubic meters, with a tear-out force of 19.46 kN. The dredging depth is 2.751 meters, and the bucket width is 1.63 meters. The maximum discharge height is 2.4 meters, and the maximum reach horizontal is 3.608 meters. It has a travel speed of 12 km/h. The transport width is 1.61 meters, and the transport height is 2.298 meters. The backhoe has a bucket capacity of 0.06 cubic meters and a tear-out force of 14.7 kN. Special equipment includes air conditioning and a forklift utility.

Backhoe Loaders Hidromek HMK 62 SS
Backhoe Loaders Hidromek HMK 62 SS
Backhoe Loaders Hidromek HMK 62 SS
Backhoe Loaders Hidromek HMK 62 SS
Backhoe Loaders Hidromek HMK 62 SS
Backhoe Loaders Hidromek HMK 62 SS

Visit Hidromek live at

Technical specs - HMK 62 SS Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Standard tyres
10x16.5-10PR
Bucket width
1.63 m
Bucket capacity
0.35 m³
Bucket capacity backhoe
0.06 m³
Drive
A
Transport length
3.72 m
Transport width
1.61 m
Transport height
2.298 m
Tear-out force
19.46 kN
Tear-out force backhoe
14.7 kN
Max. Reach horizontal
3.608 m
Dredging depth
2.751 m
Max. discharge height
2.4 m
Travel speed
12 km/h
Model series
HMK
Engine manuf.
Kubota
Engine type
V2403-M-T
Engine power
44 kW
Displacement
2.434 l
Revolutions at max torque
1600 rpm
Max. torque
160 Nm
No. of cylinders
4
Cylinder bore x stroke
87x102.4 mm
Emission level
III A

More technical details, like: dimension lxwxh, backhoe type, telematics available, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, torque rated speed, torque, transmission type, number of travel speeds...

More technical details, like: dimension lxwxh, backhoe type, telematics available, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, torque rated speed, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, shovel quick-hitch, backhoe quick-hitch, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
Yes

Download datasheets (PDF)

Hidromek HMK 62 SS FAQ

When was the Hidromek HMK 62 SS manufactured?

The Hidromek HMK 62 SS was manufactured from 2011 to 2020.

How much does the Hidromek HMK 62 SS weigh?

The Hidromek HMK 62 SS weighs 3.8 tons.

What are the transport dimensions of the Hidromek HMK 62 SS backhoe loader?

The transport dimensions of the Hidromek HMK 62 SS are 3.72 meters in length, 1.61 meters in width, and 2.3 meters in height.

What is the travel speed of the Hidromek HMK 62 SS backhoe loader?

The Hidromek HMK 62 SS backhoe loader has a travel speed of 12 km/h.

What are the undercarriage specifications of the Hidromek HMK 62 SS backhoe loader?

The Hidromek HMK 62 SS features an all-wheel drive system and standard tyres sized 10x16.5-10PR.

What are the excavation performance specifications of the Hidromek HMK 62 SS?

The Hidromek HMK 62 SS has a dredging depth of 2.751 meters and a maximum horizontal reach of 3.608 meters.

What are the tear-out forces of the Hidromek HMK 62 SS backhoe loader?

The Hidromek HMK 62 SS has a tear-out force of 19.46 kN and a backhoe tear-out force of 14.7 kN.

What is the maximum discharge height of the Hidromek HMK 62 SS?

The Hidromek HMK 62 SS has a maximum discharge height of 2.4 meters.

What are the specifications of the primary work tools on the Hidromek HMK 62 SS backhoe loader?

The Hidromek HMK 62 SS features a front loader bucket with a capacity of 0.35 mu00b3 and a width of 1.63 m, and a backhoe bucket with a capacity of 0.06 mu00b3.
