HMK 102 S Alpha Hidromek HMK 102 S Alpha Specifications & Technical Data (2014—2020)

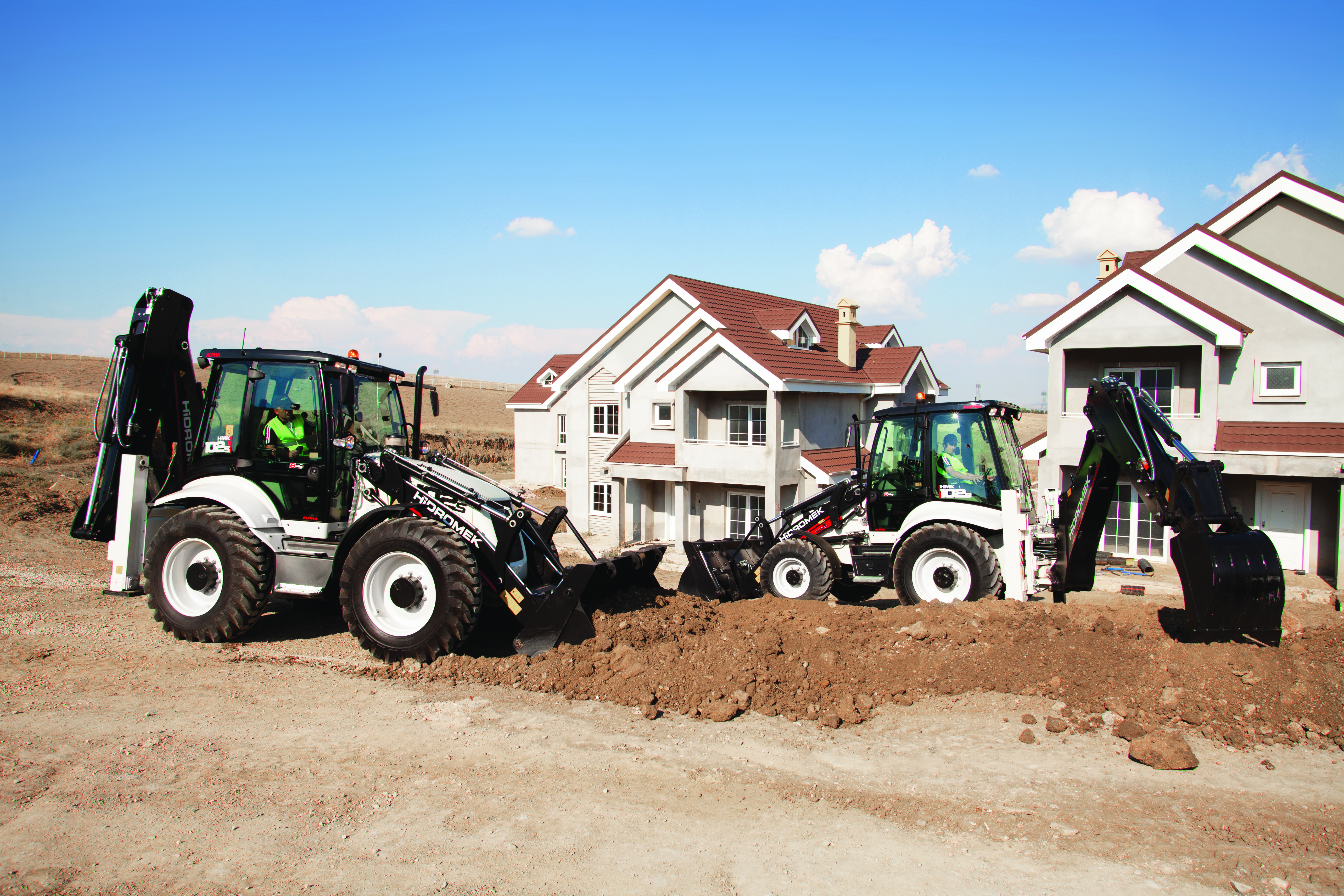

The Hidromek HMK 102 S Alpha is a backhoe loader manufactured by Hidromek from 2014 to 2020. It has a weight of 9.55 tons and a tr…

The Hidromek HMK 102 S Alpha is a backhoe loader manufactured by Hidromek from 2014 to 2020. It has a weight of 9.55 tons and a transport length of 6.09 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 62.4 kN. The dredging depth is 5.703 meters, and the bucket width is 2.44 meters. The maximum discharge height is 4.679 meters, and the maximum reach horizontal is 6.854 meters. It has a travel speed of 40 km/h. The transport width is 2.292 meters, and the transport height is 3.6 meters. The backhoe has a bucket capacity of 0.17 cubic meters and a tear-out force of 28.11 kN. It is equipped with special features such as air conditioning, a clamshell, a diesel particulate filter, forklift utility, and outrigger stabilizers.

Backhoe Loaders Hidromek HMK 102 S Alpha

Visit Hidromek live at

HMK 102 S Alpha

Years of manufacture: 2014—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - HMK 102 S Alpha Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.55 t

Standard tyres: 16.9x28-14 PR

Bucket width: 2.44 m

Bucket capacity: 1.1 m³

Bucket capacity backhoe: 0.17 m³

Drive: A

Transport length: 6.09 m

Transport width: 2.292 m

Transport height: 3.6 m

Tear-out force: 62.4 kN

Tear-out force backhoe: 28.11 kN

Max. Reach horizontal: 6.854 m

Dredging depth: 5.703 m

Max. discharge height: 4.679 m

Travel speed: 40 km/h

Model series: HMK

Engine manuf.: Perkins

Engine type: 1104D-44TA

Engine power: 74.5 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

Max. torque: 410/1400 Nm

No. of cylinders: 4

Cylinder bore x stroke: 105x127 mm

Emission level: III A / Tier 3

More technical details, like: dimension lxwxh, backhoe type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, charged air cooling, exhaust gas recirculation, rated speed, engine output - net, engine output - gross, torque rated speed, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, shovel quick-hitch, backhoe quick-hitch, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: Yes
Aircondition: Yes

Download datasheets (PDF)

Hidromek HMK 102 S Alpha FAQ

When was the Hidromek HMK 102 S Alpha manufactured?

The Hidromek HMK 102 S Alpha was manufactured from 2014 to 2020.

How much does the Hidromek HMK 102 S Alpha weigh?

The Hidromek HMK 102 S Alpha weighs 9.55 tons.

What are the transport dimensions of the Hidromek HMK 102 S Alpha backhoe loader?

The transport dimensions of the Hidromek HMK 102 S Alpha are 6.09 meters in length, 2.29 meters in width, and 3.6 meters in height.

What is the travel speed of the Hidromek HMK 102 S Alpha backhoe loader?

The Hidromek HMK 102 S Alpha has a travel speed of 40 km/h.

What are the undercarriage specifications of the Hidromek HMK 102 S Alpha backhoe loader?

The Hidromek HMK 102 S Alpha features an all-wheel drive system and comes equipped with standard tyres sized 16.9x28-14 PR.

What are the excavation performance specifications of the Hidromek HMK 102 S Alpha?

The Hidromek HMK 102 S Alpha has a dredging depth of 5.703 meters and a maximum horizontal reach of 6.854 meters.

What are the tear-out forces of the Hidromek HMK 102 S Alpha?

The Hidromek HMK 102 S Alpha has a tear-out force of 62.4 kN and a tear-out force backhoe of 28.11 kN.

What is the material handling capacity of the Hidromek HMK 102 S Alpha in terms of discharge height?

The Hidromek HMK 102 S Alpha has a maximum discharge height of 4.68 meters.

What are the primary work tool specifications of the Hidromek HMK 102 S Alpha backhoe loader?

The Hidromek HMK 102 S Alpha features a bucket capacity of 1.1 cubic meters, a bucket width of 2.44 meters, and a backhoe bucket capacity of 0.17 cubic meters.

How much is a Hidromek HMK 102 S Alpha Backhoe loader (2014u20132020) worth?

The residual value of the Hidromek HMK 102 S Alpha depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
