HMK 102 B Alpha Hidromek HMK 102 B Alpha Specifications & Technical Data (2021—2026)

The Hidromek HMK 102 B Alpha is a backhoe loader manufactured by Hidromek since 2021. It has a weight of 9.24 tons and a transport…

The Hidromek HMK 102 B Alpha is a backhoe loader manufactured by Hidromek since 2021. It has a weight of 9.24 tons and a transport length of 6.049 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 68.852 kilonewtons. The dredging depth reaches up to 5.627 meters, while the bucket width measures 2.42 meters. The maximum discharge height is 4.735 meters, and the maximum reach horizontally is 6.845 meters. The travel speed of this machine is 40 kilometers per hour. It has a transport width of 2.292 meters and a transport height of 3.593 meters. The backhoe bucket capacity is 0.18 cubic meters, with a tear-out force of 21.8 kilonewtons. The HMK 102 B Alpha is equipped with special features such as air conditioning, a clamshell, a diesel particulate filter, forklift utility, and outrigger stabilizers.

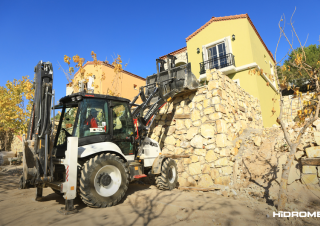

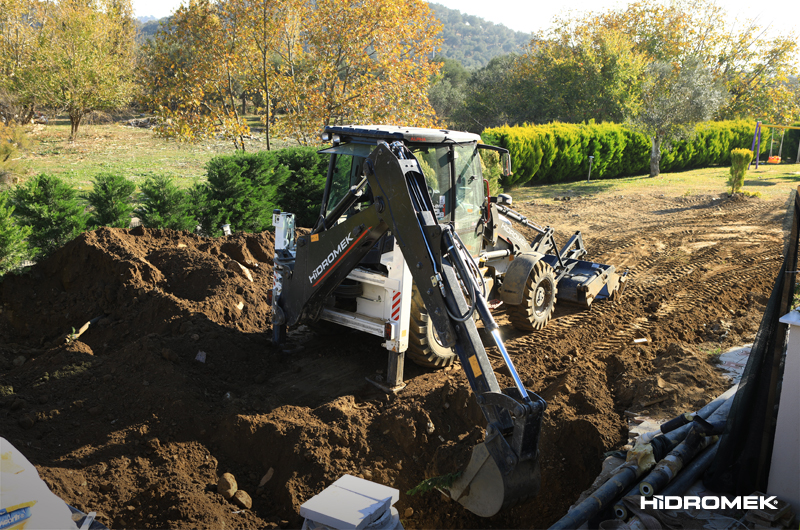

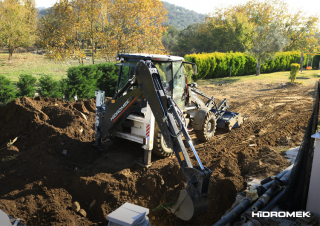

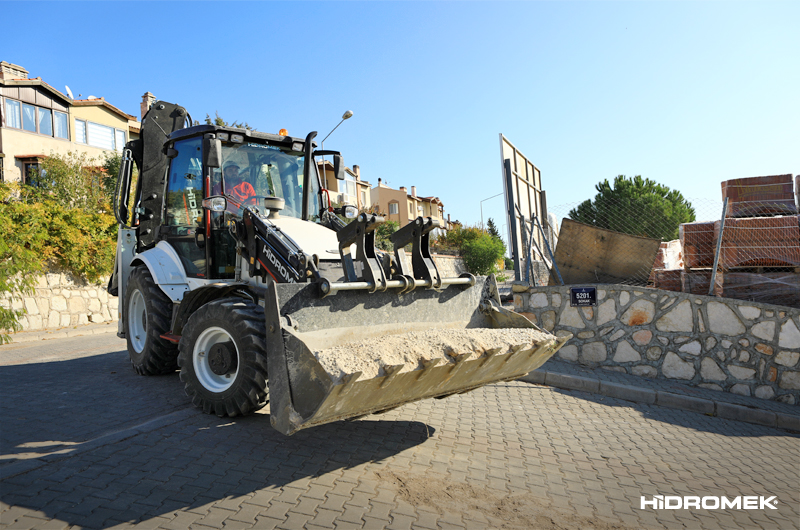

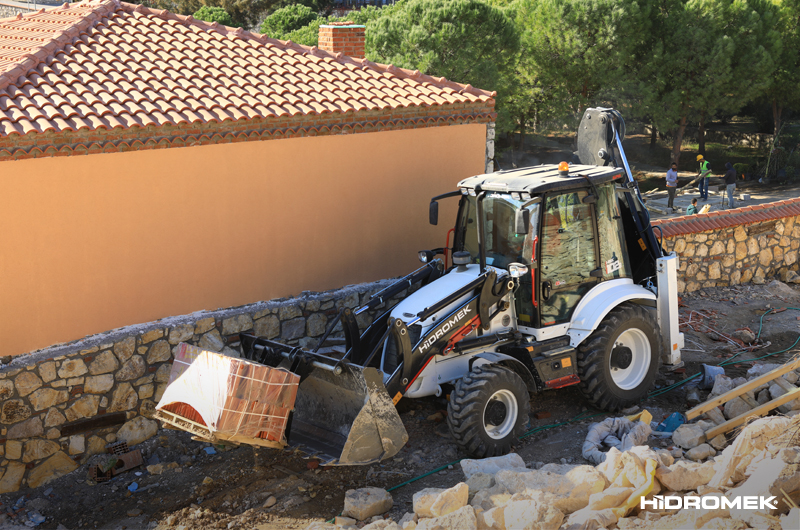

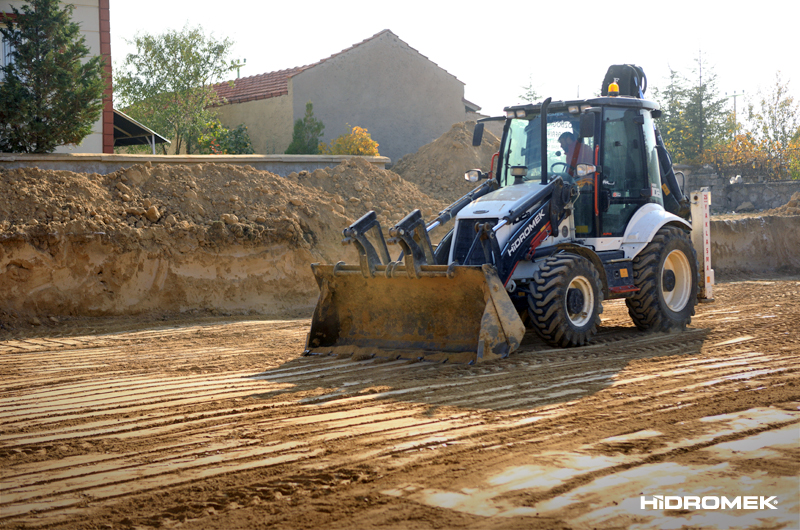

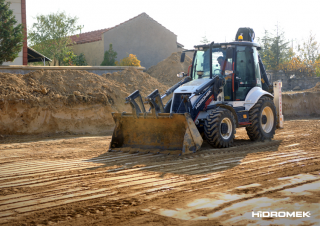

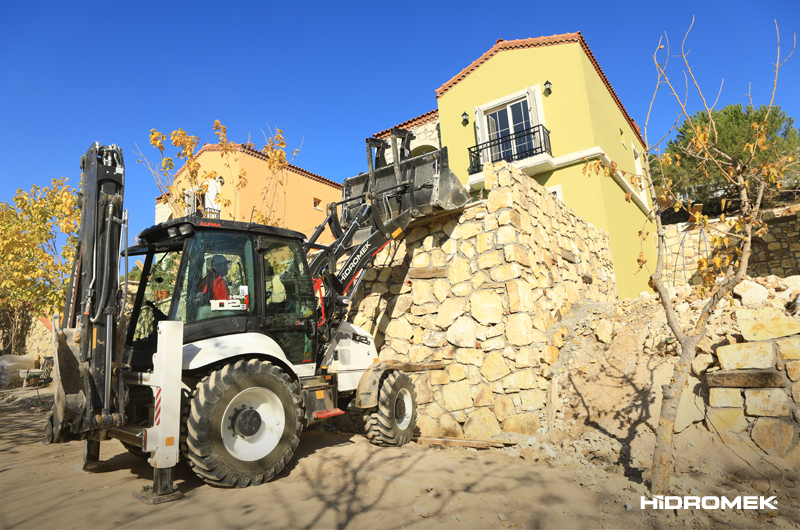

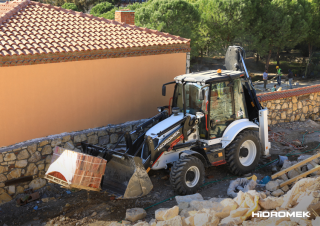

Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha

Visit Hidromek live at

Technical specs - HMK 102 B Alpha Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.3 t
Standard tyres
VR 16/70x20-12PR HR 16.9-28 14PRVR
Bucket width
2.42 m
Bucket capacity
1.1 m³
Bucket capacity backhoe
0.18 m³
Drive
A
Transport length
6.017 m
Transport width
2.422 m
Transport height
3.604 m
Tear-out force
72.32 kN
Tear-out force backhoe
68.8 kN
Max. Reach horizontal
6.819 m
Dredging depth
5.606 m
Max. discharge height
4.705 m
Travel speed
40 km/h
Model series
HMK
Engine manuf.
Perkins
Engine type
904J-E36TA
Engine power
74.4 kW
Displacement
3.621 l
Revolutions at max torque
2200 rpm
Max. torque
430/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
98x120 mm
Emission level
V/Tier 4 f

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
Yes

Download datasheets (PDF)

Hidromek HMK 102 B Alpha FAQ

When was the Hidromek HMK 102 B Alpha manufactured?

The Hidromek HMK 102 B Alpha was first produced in 2021.

How much does the Hidromek HMK 102 B Alpha weigh?

The Hidromek HMK 102 B Alpha weighs 9.24 tons.

What are the transport dimensions of the Hidromek HMK 102 B Alpha backhoe loader?

The transport dimensions of the Hidromek HMK 102 B Alpha are 6.05 meters in length, 2.29 meters in width, and 3.59 meters in height.

What is the travel speed of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a travel speed of 40 km/h.

What are the undercarriage specifications of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha features an all-wheel drive system with standard tyres sized Front: 16/70x20-12PR and Rear: 16.9-28 14PRVR.

What are the excavation performance specifications of the Hidromek HMK 102 B Alpha?

The Hidromek HMK 102 B Alpha has a dredging depth of 5.627 meters and a maximum horizontal reach of 6.845 meters.

What are the tear-out force ratings of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a tear-out force of 68.852 kN and a backhoe tear-out force of 21.8 kN.

What is the maximum discharge height of the Hidromek HMK 102 B Alpha?

The Hidromek HMK 102 B Alpha has a maximum discharge height of 4.74 meters.

What are the primary work tool specifications of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a bucket capacity of 1.1 cubic meters, a bucket width of 2.42 meters, and a backhoe bucket capacity of 0.18 cubic meters.

How much is a Hidromek HMK 102 B Alpha Backhoe loader (2021u20132025) worth?

The residual value of the Hidromek HMK 102 B Alpha depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
