Multi Job MJX 990 Haulotte Multi Job MJX 990 Specifications & Technical Data (2007—2012)

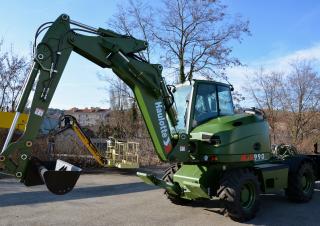

The Haulotte Multi Job MJX 990 is a backhoe loader manufactured by Haulotte from 2007 to 2012. It has a weight of 10.29 tons and a…

The Haulotte Multi Job MJX 990 is a backhoe loader manufactured by Haulotte from 2007 to 2012. It has a weight of 10.29 tons and a transport length of 6 meters. The bucket capacity is 1 cubic meter, and it has a tear-out force of 50 kilonewtons. The dredging depth is 3.8 meters, and the maximum discharge height is 4.3 meters. With a maximum reach of 6.8 meters horizontally, it has a transport width of 2.4 meters. This construction machine is equipped with outrigger stabilizers.

Multi Job MJX 990

Years of manufacture: 2007—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Multi Job MJX 990 Haulotte

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.29 t

Standard tyres: 405/70 R-20 R

Bucket capacity: 1 m³

Transport length: 6 m

Transport width: 2.4 m

Tear-out force: 50 kN

Max. Reach horizontal: 6.8 m

Dredging depth: 3.8 m

Max. discharge height: 4.3 m

Model series: Multi Job

Engine manuf.: Deutz

Engine type: BF4M2012

Engine power: 68 kW

Displacement: 4 l

More technical details, like: bucket width, bucket capacity backhoe, drive, transport height, tear-out force backhoe, travel speed, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, torque rated speed, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Multi Job MJX 990 Haulotte Specification for Europe (FR)

Haulotte Multi Job MJX 990 FAQ

When was the Haulotte Multi Job MJX 990 manufactured?

The Haulotte Multi Job MJX 990 was manufactured from 2007 to 2012.

How much does the Haulotte Multi Job MJX 990 weigh?

The Haulotte Multi Job MJX 990 weighs 10.29 tons.

What are the transport dimensions of the Haulotte Multi Job MJX 990?

The Haulotte Multi Job MJX 990 has a transport length of 6 meters and a transport width of 2.4 meters.

What are the undercarriage tyre specifications of the Haulotte Multi Job MJX 990 backhoe loader?

The Haulotte Multi Job MJX 990 is equipped with standard tyres sized 405/70 R-20 R.

What are the dredging depth and maximum horizontal reach of the Haulotte Multi Job MJX 990?

The Haulotte Multi Job MJX 990 has a dredging depth of 3.8 meters and a maximum horizontal reach of 6.8 meters.

What is the tear-out force of the Haulotte Multi Job MJX 990 backhoe loader?

The Haulotte Multi Job MJX 990 backhoe loader has a tear-out force of 50 kN.

What is the maximum discharge height of the Haulotte Multi Job MJX 990?

The Haulotte Multi Job MJX 990 has a maximum discharge height of 4.3 meters.

What is the bucket capacity of the Haulotte Multi Job MJX 990 backhoe loader?

The Haulotte Multi Job MJX 990 backhoe loader has a bucket capacity of 1 cubic meter.
