BL 818 Gehl BL 818 Specifications & Technical Data (2018—2026)

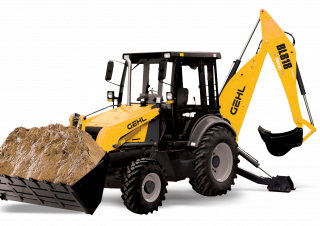

The Gehl BL 818 is a backhoe loader manufactured by Gehl since 2018. It has a weight of 6.88 tons and a transport length of 7.34 m…

The Gehl BL 818 is a backhoe loader manufactured by Gehl since 2018. It has a weight of 6.88 tons and a transport length of 7.34 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 46.64 kilonewtons. The dredging depth is 4.74 meters, and the bucket width is 2.33 meters. The maximum discharge height is 2.71 meters, and the maximum reach horizontal is 5.73 meters. It has a travel speed of 40 kilometers per hour. The transport width is 2.33 meters, and the transport height is 3.76 meters. The backhoe bucket capacity is 0.24 cubic meters, with a tear-out force of 51.18 kilonewtons.

Backhoe Loaders Gehl BL 818

Technical specs - BL 818 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.88 t
Standard tyres
Front: 12.5 x 18 - 12 PR. Rear: 16.9 x 28 - 12 PR
Bucket width
2.33 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.24 m³
Transport length
7.34 m
Transport width
2.33 m
Transport height
3.76 m
Tear-out force
46.64 kN
Tear-out force backhoe
51.18 kN
Max. Reach horizontal
5.73 m
Dredging depth
4.74 m
Max. discharge height
2.71 m
Travel speed
40 km/h
Model series
BL

More technical details, like: drive, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Gehl BL 818 FAQ

When was the Gehl BL 818 manufactured?

The Gehl BL 818 was first produced in 2018.

How much does the Gehl BL 818 backhoe loader weigh?

The Gehl BL 818 backhoe loader weighs 6.88 tons.

What are the transport dimensions of the Gehl BL 818 backhoe loader?

The Gehl BL 818 has a transport length of 7.34 meters, a transport width of 2.33 meters, and a transport height of 3.76 meters.

What is the travel speed of the Gehl BL 818 backhoe loader?

The Gehl BL 818 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Gehl BL 818 backhoe loader?

The Gehl BL 818 backhoe loader has standard tyres with sizes Front 12.5 x 18 - 12 PR and Rear 16.9 x 28 - 12 PR.

What are the excavation capabilities of the Gehl BL 818 backhoe loader?

The Gehl BL 818 has a dredging depth of 4.74 meters and a maximum horizontal reach of 5.73 meters.

What are the tear-out forces of the Gehl BL 818 backhoe loader?

The Gehl BL 818 has a tear-out force of 46.64 kN and a backhoe tear-out force of 51.18 kN.

What is the material handling capacity of the Gehl BL 818 in terms of discharge height?

The Gehl BL 818 has a maximum discharge height of 2.71 meters.

What are the specifications of the primary work tool on the Gehl BL 818 backhoe loader?

The Gehl BL 818 features a bucket with a capacity of 1 cubic meter and a width of 2.33 meters, along with a backhoe bucket capacity of 0.24 cubic meters.
