BL 740S Gehl BL 740S Specifications & Technical Data (2018—2026)

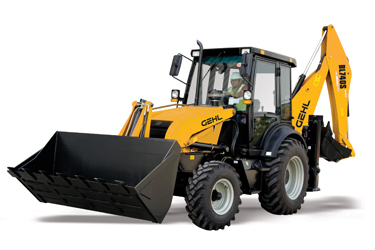

The Gehl BL 740S is a backhoe loader manufactured by Gehl since 2018. It has a weight of 7.5 tons and a transport length of 7.338 …

The Gehl BL 740S is a backhoe loader manufactured by Gehl since 2018. It has a weight of 7.5 tons and a transport length of 7.338 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 46.64 kN. It can dredge up to a depth of 4.741 meters and has a bucket width of 2.235 meters. The maximum discharge height is 2.708 meters, and it can reach a maximum horizontal distance of 5.73 meters. The travel speed of this machine is 40 km/h. It has a transport width of 2.33 meters and a transport height of 3.762 meters. The backhoe bucket capacity is 0.24 cubic meters, with a tear-out force of 51.18 kN.

BL 740S

Years of manufacture: 2018—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - BL 740S Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.5 t

Standard tyres: Front: 9 x 16-16 PR. Rear: 16.9 x 28 - 12 PR

Bucket width: 2.235 m

Bucket capacity: 1 m³

Bucket capacity backhoe: 0.24 m³

Transport length: 7.338 m

Transport width: 2.33 m

Transport height: 3.762 m

Tear-out force: 46.64 kN

Tear-out force backhoe: 51.18 kN

Max. Reach horizontal: 5.73 m

Dredging depth: 4.741 m

Max. discharge height: 2.708 m

Travel speed: 40 km/h

Model series: BLS

More technical details, like: drive, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

BL 740S Gehl Specification for Europe (EN)

Gehl BL 740S FAQ

When was the Gehl BL 740S manufactured?

The Gehl BL 740S was first produced in 2018.

How much does the Gehl BL 740S backhoe loader weigh?

The Gehl BL 740S backhoe loader weighs 7.5 tons.

What are the transport dimensions of the Gehl BL 740S backhoe loader?

The Gehl BL 740S has a transport length of 7.34 meters, a transport width of 2.33 meters, and a transport height of 3.76 meters.

What is the travel speed of the Gehl BL 740S backhoe loader?

The Gehl BL 740S has a travel speed of 40 km/h.

What are the standard tyre specifications of the Gehl BL 740S backhoe loader?

The Gehl BL 740S is equipped with standard tyres: Front: 9 x 16-16 PR. / Rear: 16.9 x 28 - 12 PR.

What are the excavation performance specifications of the Gehl BL 740S backhoe loader?

The Gehl BL 740S has a dredging depth of 4.741 meters and a maximum horizontal reach of 5.73 meters.

What are the tear-out forces of the Gehl BL 740S backhoe loader?

The Gehl BL 740S has a tear-out force of 46.64 kN and a tear-out force for the backhoe of 51.18 kN.

What is the maximum discharge height of the Gehl BL 740S?

The Gehl BL 740S has a maximum discharge height of 2.71 meters.

What are the specifications of the primary work tool on the Gehl BL 740S backhoe loader?

The Gehl BL 740S has a bucket capacity of 1 cubic meter, a bucket width of 2.24 meters, and a backhoe bucket capacity of 0.24 cubic meters.
