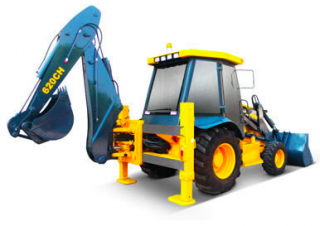

620CH Changlin 620CH Specifications & Technical Data (2017—2026)

The Changlin 620CH Backhoe Loader, manufactured since 2017, weighs 8 tons and has a transport length of 5.835 meters. It has a buc…

The Changlin 620CH Backhoe Loader, manufactured since 2017, weighs 8 tons and has a transport length of 5.835 meters. It has a bucket capacity of 1 cubic meter and a tear-out force of 56 kilonewtons. The dredging depth is 4.365 meters, while the bucket width measures 2.313 meters. The maximum discharge height is 2.714 meters, and the maximum reach horizontal is 5.39 meters. The transport width is 2.24 meters, and the transport height is 3.548 meters.

620CH

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 620CH Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8 t

Standard tyres: 12-16.5NHS-10PR

Bucket width: 2.313 m

Bucket capacity: 1 m³

Drive: A/H

Transport length: 5.835 m

Transport width: 2.24 m

Transport height: 3.548 m

Tear-out force: 56 kN

Max. Reach horizontal: 5.39 m

Dredging depth: 4.365 m

Max. discharge height: 2.714 m

Model series: CH

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

620CH Changlin Specification for Europe (EN)

Changlin 620CH FAQ

When was the Changlin 620CH manufactured?

The Changlin 620CH was first produced in 2017.

How much does the Changlin 620CH backhoe loader weigh?

The Changlin 620CH backhoe loader weighs 8 tons.

What are the transport dimensions of the Changlin 620CH backhoe loader?

The Changlin 620CH has a transport length of 5.84 meters, a transport width of 2.24 meters, and a transport height of 3.55 meters.

What are the undercarriage specifications of the Changlin 620CH backhoe loader?

The Changlin 620CH backhoe loader has All-wheel, Rear wheel drive and is equipped with standard 12-16.5NHS-10PR tyres.

What is the excavation performance of the Changlin 620CH backhoe loader?

The Changlin 620CH has a dredging depth of 4.365 meters and a maximum horizontal reach of 5.39 meters.

What is the tear-out force of the Changlin 620CH backhoe loader?

The Changlin 620CH backhoe loader has a tear-out force of 56 kN.

What is the maximum discharge height of the Changlin 620CH?

The Changlin 620CH has a maximum discharge height of 2.71 meters.

What are the specifications of the primary work tool on the Changlin 620CH backhoe loader?

The primary work tool of the Changlin 620CH backhoe loader has a bucket capacity of 1 cubic meter and a bucket width of 2.31 meters.

How much is a Changlin 620CH Backhoe loader (2017u20132025) worth?

The residual value of the Changlin 620CH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
