450F Caterpillar 450F Specifications & Technical Data (2017—2019)

The Caterpillar 450F is a backhoe loader manufactured by Caterpillar from 2017 to 2019. It has a weight of 10.95 tons and a transp…

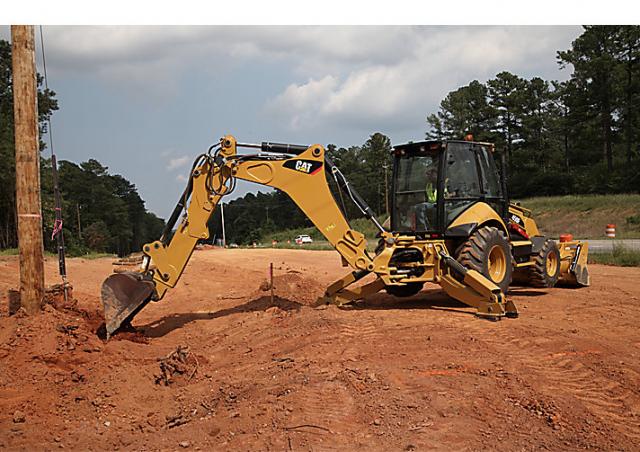

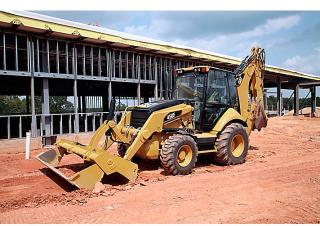

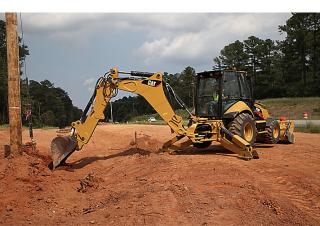

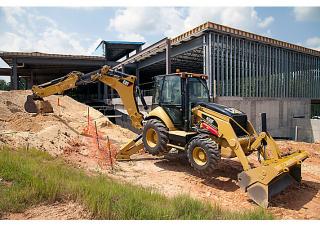

The Caterpillar 450F is a backhoe loader manufactured by Caterpillar from 2017 to 2019. It has a weight of 10.95 tons and a transport length of 7.916 meters. The bucket capacity is 1.34 cubic meters, with a tear-out force of 50.6 kilonewtons. It can dredge up to a depth of 5.26 meters and has a bucket width of 2.434 meters. The maximum discharge height is 2.666 meters, and it has a maximum reach horizontal of 6.704 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.436 meters and a transport height of 4.143 meters. Additionally, it is equipped with a diesel particulate filter and outrigger stabilizers. The backhoe tear-out force is 78.9 kilonewtons.

450F

Years of manufacture: 2017—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 450F Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.95 t

Standard tyres: 12-19.5 12 ply/21L-24 16 ply

Bucket width: 2.434 m

Bucket capacity: 1.34 m³

Drive: A

Transport length: 7.916 m

Transport width: 2.436 m

Transport height: 4.143 m

Tear-out force: 50.6 kN

Tear-out force backhoe: 78.9 kN

Max. Reach horizontal: 6.704 m

Dredging depth: 5.26 m

Max. discharge height: 2.666 m

Travel speed: 40 km/h

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 95 kW

Displacement: 4.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 536 Nm

Cylinder bore x stroke: 105x127 mm

Emission level: U.S. EPA Tier 4 Interim/EU Stage IIIB

More technical details, like: bucket capacity backhoe, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: Yes
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar 450F FAQ

When was the Caterpillar 450F backhoe loader manufactured?

The Caterpillar 450F backhoe loader was manufactured from 2017 to 2019.

How much does the Caterpillar 450F backhoe loader weigh?

The Caterpillar 450F backhoe loader weighs 10.95 tons.

What are the transport dimensions of the Caterpillar 450F backhoe loader?

The Caterpillar 450F has a transport length of 7.92 meters, a transport width of 2.44 meters, and a transport height of 4.14 meters.

What is the travel speed of the Caterpillar 450F backhoe loader?

The Caterpillar 450F backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 450F backhoe loader?

The Caterpillar 450F backhoe loader has an all-wheel drive and comes with standard tyres sized 12-19.5 12 ply and 21L-24 16 ply.

What are the excavation performance specifications of the Caterpillar 450F backhoe loader?

The Caterpillar 450F backhoe loader has a dredging depth of 5.26 meters and a maximum horizontal reach of 6.704 meters.

What are the tear-out forces of the Caterpillar 450F backhoe loader?

The Caterpillar 450F backhoe loader has a tear-out force of 50.6 kN and a backhoe tear-out force of 78.9 kN.

What is the maximum discharge height of the Caterpillar 450F backhoe loader?

The Caterpillar 450F backhoe loader has a maximum discharge height of 2.67 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 450F backhoe loader?

The primary work tool bucket on the Caterpillar 450F backhoe loader has a capacity of 1.34 cubic meters and a width of 2.43 meters.
