450 E Caterpillar 450 E Specifications & Technical Data (2007—2026)

The Caterpillar 450 E is a backhoe loader manufactured by Caterpillar since 2007. It has a weight of 12.3 tons and a transport len…

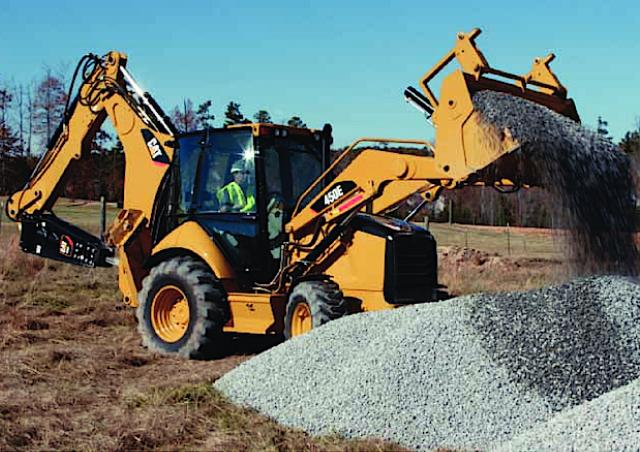

The Caterpillar 450 E is a backhoe loader manufactured by Caterpillar since 2007. It has a weight of 12.3 tons and a transport length of 7.91 meters. The bucket capacity is 1.34 cubic meters, with a tear-out force of 50.6 kilonewtons. It can dredge up to a depth of 5.26 meters and has a bucket width of 2.43 meters. The maximum discharge height is 2.67 meters, and it can reach horizontally up to 7.96 meters. The travel speed is 40 kilometers per hour. The transport width is 2.44 meters, and the transport height is 4.14 meters. The backhoe has a bucket capacity of 0 cubic meters and a tear-out force of 78.94 kilonewtons.

450 E

Years of manufacture: 2007—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 450 E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.3 t

Standard tyres: F: 15-19.5 12 ply/R: 21L-24 18 ply

Bucket width: 2.43 m

Bucket capacity: 1.34 m³

Bucket capacity backhoe: 0.19-0.48 m³

Transport length: 7.91 m

Transport width: 2.44 m

Transport height: 4.14 m

Tear-out force: 50.6 kN

Tear-out force backhoe: 78.94 kN

Max. Reach horizontal: 7.96 m

Dredging depth: 5.26 m

Max. discharge height: 2.67 m

Travel speed: 40 km/h

Engine manuf.: Caterpillar

Engine type: C4.4

Engine power: 102 kW

Displacement: 4.4 l

Max. torque: 514 Nm

Cylinder bore x stroke: 105x127 mm

More technical details, like: drive, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download specalog and datasheets (PDF)

450 E Caterpillar Specification for Europe (EN)

Caterpillar 450 E FAQ

When was the Caterpillar 450 E manufactured?

The Caterpillar 450 E was first produced in 2007.

How much does the Caterpillar 450 E backhoe loader weigh?

The Caterpillar 450 E backhoe loader weighs 12.3 tons.

What are the transport dimensions of the Caterpillar 450 E backhoe loader?

The Caterpillar 450 E has a transport length of 7.91 meters, a transport width of 2.44 meters, and a transport height of 4.14 meters.

What is the travel speed of the Caterpillar 450 E backhoe loader?

The Caterpillar 450 E backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 450 E backhoe loader?

The Caterpillar 450 E backhoe loader has standard tyres with front tyres sized 15-19.5 12 ply and rear tyres sized 21L-24 18 ply.

What is the excavation performance of the Caterpillar 450 E backhoe loader?

The Caterpillar 450 E backhoe loader has a dredging depth of 5.26 meters and a maximum horizontal reach of 7.96 meters.

What are the tear-out forces of the Caterpillar 450 E backhoe loader?

The Caterpillar 450 E has a tear-out force of 50.6 kN and a tear-out force for the backhoe of 78.94 kN.

What is the maximum discharge height of the Caterpillar 450 E?

The Caterpillar 450 E has a maximum discharge height of 2.67 meters.

What are the bucket specifications of the Caterpillar 450 E backhoe loader?

The Caterpillar 450 E backhoe loader has a bucket capacity of 1.34 cubic meters and a bucket width of 2.43 meters.
