450 Caterpillar 450 Specifications & Technical Data (2019—2026)

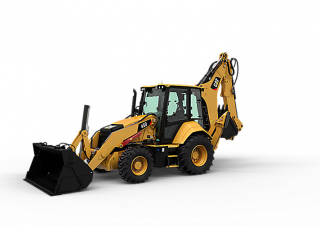

The Caterpillar 450 is a backhoe loader manufactured by Caterpillar since 2019. It has a weight of 10.9 tons and a transport lengt…

The Caterpillar 450 is a backhoe loader manufactured by Caterpillar since 2019. It has a weight of 10.9 tons and a transport length of 7.93 meters. The bucket capacity is 1.34 cubic meters, with a dredging depth of 5.18 meters and a bucket width of 2.45 meters. The travel speed of this backhoe loader is 40.6 kilometers per hour. It has a transport width of 2.41 meters and a transport height of 4.21 meters. The tear-out force of the backhoe is 79.11 kilonewtons. Additionally, it is equipped with air conditioning and outrigger stabilizers.

450

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 450 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.9 t

Standard tyres: 12.5 80/16.9 / 16.9-24

Bucket width: 2.45 m

Bucket capacity: 1.34 m³

Drive: A/H

Transport length: 7.93 m

Transport width: 2.41 m

Transport height: 4.21 m

Tear-out force backhoe: 79.11 kN

Dredging depth: 5.18 m

Travel speed: 40.6 km/h

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 98 kW

Displacement: 4.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 540 Nm

Cylinder bore x stroke: 105x127 mm

Emission level: U.S. EPA Tier 4 Final

More technical details, like: bucket capacity backhoe, tear-out force, max. reach horizontal, max. discharge height, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: Yes

Download specalog and datasheets (PDF)

450 Caterpillar Specification for North America (EN)

Caterpillar 450 FAQ

When was the Caterpillar 450 backhoe loader manufactured?

The Caterpillar 450 backhoe loader was first produced in 2019.

How much does the Caterpillar 450 backhoe loader weigh?

The Caterpillar 450 backhoe loader weighs 10.9 tons.

What are the transport dimensions of the Caterpillar 450 backhoe loader?

The Caterpillar 450 backhoe loader has a transport length of 7.93 meters, a transport width of 2.41 meters, and a transport height of 4.21 meters.

What is the travel speed of the Caterpillar 450 backhoe loader?

The Caterpillar 450 backhoe loader has a travel speed of 40.6 km/h.

What are the undercarriage specifications of the Caterpillar 450 backhoe loader?

The Caterpillar 450 backhoe loader has either all-wheel drive or rear wheel drive and comes with standard tyres sized 12.5 80/16.9 / 16.9-24.

What is the dredging depth of the Caterpillar 450 backhoe loader?

The Caterpillar 450 backhoe loader has a dredging depth of 5.18 meters.

What is the tear-out force of the Caterpillar 450 backhoe loader?

The Caterpillar 450 backhoe loader has a tear-out force of 79.11 kN.

What are the specifications of the primary work tool bucket on the Caterpillar 450 backhoe loader?

The primary work tool bucket of the Caterpillar 450 has a capacity of 1.34 cubic meters and a width of 2.45 meters.

How much is a Caterpillar 450 Backhoe loader (2019u20132025) worth?

The residual value of the Caterpillar 450 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
