446 D Caterpillar 446 D Specifications & Technical Data (2004—2008)

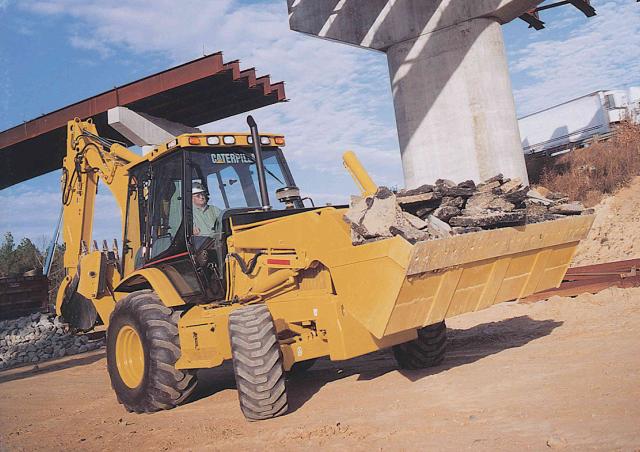

The Caterpillar 446 D is a backhoe loader that has been manufactured since 2004. It weighs 11.5 tons and has a transport length of…

The Caterpillar 446 D is a backhoe loader that has been manufactured since 2004. It weighs 11.5 tons and has a transport length of 7.95 meters. The bucket capacity is 1.15 cubic meters, with a tear-out force of 61.7 kilonewtons. It can dredge up to a depth of 5.14 meters and has a bucket width of 2.43 meters. The maximum discharge height is 2.72 meters, and it can reach horizontally up to 7.87 meters. The travel speed is 31.5 kilometers per hour. The transport width is 2.48 meters, and the transport height is 4.18 meters. The backhoe has a bucket capacity of 0 cubic meters and a tear-out force of 75.4 kilonewtons.

446 D

Years of manufacture: 2004—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 446 D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.5 t

Standard tyres: F: 14.5/75x16.1 10PR/R: 21Lx24 12PR

Bucket width: 2.43 m

Bucket capacity: 1.15 m³

Transport length: 7.95 m

Transport width: 2.48 m

Transport height: 4.18 m

Tear-out force: 61.7 kN

Tear-out force backhoe: 75.4 kN

Max. Reach horizontal: 7.87 m

Dredging depth: 5.14 m

Max. discharge height: 2.72 m

Travel speed: 31.5 km/h

Engine manuf.: Caterpillar

Engine type: 3114 DIT

Engine power: 82 kW

Displacement: 4.4 l

Cylinder bore x stroke: 105x127 mm

More technical details, like: bucket capacity backhoe, drive, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download specalog and datasheets (PDF)

446 D Caterpillar Specification for Europe (EN)

Caterpillar 446 D FAQ

When was the Caterpillar 446 D backhoe loader manufactured?

The Caterpillar 446 D backhoe loader was manufactured from 2004 to 2008.

How much does the Caterpillar 446 D backhoe loader weigh?

The Caterpillar 446 D backhoe loader weighs 11.5 tons.

What are the transport dimensions of the Caterpillar 446 D backhoe loader?

The Caterpillar 446 D has a transport length of 7.95 meters, a transport width of 2.48 meters, and a transport height of 4.18 meters.

What is the travel speed of the Caterpillar 446 D backhoe loader?

The Caterpillar 446 D backhoe loader has a travel speed of 31.5 km/h.

What are the undercarriage specifications of the Caterpillar 446 D backhoe loader?

The Caterpillar 446 D backhoe loader has standard tyres with front tyres sized 14.5/75x16.1 10PR and rear tyres sized 21Lx24 12PR.

What are the excavation performance specifications of the Caterpillar 446 D backhoe loader?

The Caterpillar 446 D backhoe loader has a dredging depth of 5.14 meters and a maximum horizontal reach of 7.87 meters.

What are the tear-out forces of the Caterpillar 446 D backhoe loader?

The Caterpillar 446 D has a tear-out force of 61.7 kN and a tear-out force for the backhoe of 75.4 kN.

What is the material handling capacity of the Caterpillar 446 D in terms of discharge height?

The Caterpillar 446 D has a maximum discharge height of 2.72 meters.

What are the specifications of the primary work tool on the Caterpillar 446 D backhoe loader?

The primary work tool of the Caterpillar 446 D backhoe loader has a bucket capacity of 1.15 cubic meters and a bucket width of 2.43 meters.
