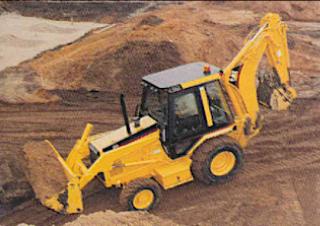

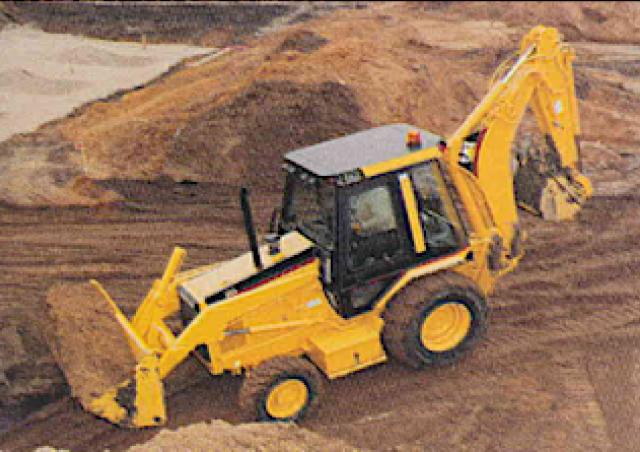

446 B Caterpillar 446 B Specifications & Technical Data (1994—2004)
Technical specs - 446 B Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.39 t
- Standard tyres
- F: 14.5/75-16.1 10PR F3/R: 21Lx24 12PR R4
- Bucket width
- 2.43 m
- Bucket capacity
- 1.1 m³
- Bucket capacity backhoe
- 0.19-0.48 m³
- Transport length
- 7.95 m
- Transport width
- 2.43 m
- Transport height
- 4.19 m
- Tear-out force
- 56 kN
- Tear-out force backhoe
- 67.6 kN
- Max. Reach horizontal
- 7.87 m
- Dredging depth
- 5.22 m
- Max. discharge height
- 2.7 m
- Travel speed
- 33 km/h
- Engine manuf.
- Caterpillar
- Engine type
- 3114
- Engine power
- 70.8 kW
- Displacement
- 4.4 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 105x127 mm
More technical details, like: drive, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
