444 Caterpillar 444 Specifications & Technical Data (2020—2026)

The Caterpillar 444 is a backhoe loader manufactured by Caterpillar since 2020. It has a weight of 9.5 tons and a transport length…

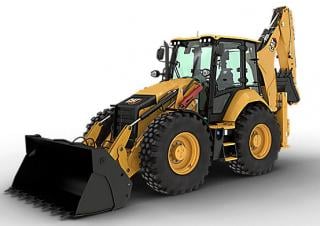

The Caterpillar 444 is a backhoe loader manufactured by Caterpillar since 2020. It has a weight of 9.5 tons and a transport length of 5.92 meters. The bucket capacity is 1.3 cubic meters, with a tear-out force of 61.2 kilonewtons. It can dredge up to a depth of 4.33 meters and has a bucket width of 2.43 meters. The maximum discharge height is 2.79 meters, and it has a maximum reach horizontal of 5.65 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.32 meters and a transport height of 3.83 meters. Additionally, it is equipped with air conditioning, a diesel particulate filter, and outrigger stabilizers. The backhoe tear-out force is 63.4 kilonewtons.

444

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 444 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.5 t

Standard tyres: 440/80-28

Bucket width: 2.43 m

Bucket capacity: 1.3 m³

Drive: A

Transport length: 5.92 m

Transport width: 2.32 m

Transport height: 3.83 m

Tear-out force: 61.2 kN

Tear-out force backhoe: 63.4 kN

Max. Reach horizontal: 5.65 m

Dredging depth: 4.33 m

Max. discharge height: 2.79 m

Travel speed: 40 km/h

Engine manuf.: Caterpillar

Engine type: C3.6

Engine power: 82 kW

Displacement: 3.6 l

Revolutions at max torque: 2200 rpm

Emission level: V

More technical details, like: bucket capacity backhoe, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: Yes
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar 444 FAQ

When was the Caterpillar 444 manufactured?

The Caterpillar 444 was first produced in 2020.

How much does the Caterpillar 444 backhoe loader weigh?

The Caterpillar 444 backhoe loader weighs 9.5 tons.

What are the transport dimensions of the Caterpillar 444 backhoe loader?

The Caterpillar 444 has a transport length of 5.92 meters, a transport width of 2.32 meters, and a transport height of 3.83 meters.

What is the travel speed of the Caterpillar 444 backhoe loader?

The Caterpillar 444 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 444 backhoe loader?

The Caterpillar 444 backhoe loader has an all-wheel drive system and uses standard tyres sized 440/80-28.

What are the excavation performance specifications of the Caterpillar 444 backhoe loader?

The Caterpillar 444 backhoe loader has a dredging depth of 4.33 meters and a maximum horizontal reach of 5.65 meters.

What are the tear-out forces of the Caterpillar 444 backhoe loader?

The Caterpillar 444 backhoe loader has a tear-out force of 61.2 kN and a tear-out force for the backhoe of 63.4 kN.

What is the maximum discharge height of the Caterpillar 444 backhoe loader?

The Caterpillar 444 backhoe loader has a maximum discharge height of 2.79 meters.

What are the specifications of the primary work tool on the Caterpillar 444 backhoe loader?

The primary work tool of the Caterpillar 444 backhoe loader has a bucket capacity of 1.3 cubic meters and a bucket width of 2.43 meters.
