442 D 4x4 Caterpillar 442 D 4x4 Specifications & Technical Data (2000—2005)

Model rating: 10,00 / 10

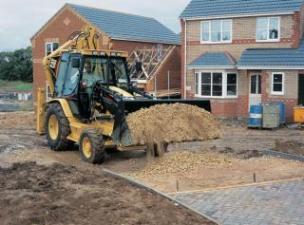

The Caterpillar 442 D 4x4 Backhoe Loader, manufactured from 2000 to 2005, weighs 7.59 tons and has a transport length of 5.71 mete…

The Caterpillar 442 D 4x4 Backhoe Loader, manufactured from 2000 to 2005, weighs 7.59 tons and has a transport length of 5.71 meters. It has a bucket capacity of 0.175 cubic meters and a tear-out force of 37.5 kilonewtons. With a dredging depth of 5.89 meters and a bucket width of 0.61 meters, it can reach a maximum discharge height of 4.27 meters. The backhoe loader has a maximum reach horizontal of 6.66 meters. It has a transport width of 2.36 meters and a transport height of 3.74 meters.

442 D 4x4

Years of manufacture: 2000—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 442 D 4x4 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.59 t

Standard tyres: 16.9x28

Bucket width: 0.61 m

Bucket capacity: 0.175 m³

Drive: A

Transport length: 5.71 m

Transport width: 2.36 m

Transport height: 3.74 m

Tear-out force: 37.5 kN

Max. Reach horizontal: 6.66 m

Dredging depth: 5.89 m

Max. discharge height: 4.27 m

Model series: S

Engine manuf.: Caterpillar

Engine type: 3054 T

Engine power: 73 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar 442 D 4x4 FAQ

When was the Caterpillar 442 D 4x4 manufactured?

The Caterpillar 442 D 4x4 was manufactured from 2000 to 2005.

How much does the Caterpillar 442 D 4x4 backhoe loader weigh?

The Caterpillar 442 D 4x4 backhoe loader weighs 7.59 tons.

What are the transport dimensions of the Caterpillar 442 D 4x4 backhoe loader?

The Caterpillar 442 D 4x4 has a transport length of 5.71 meters, a transport width of 2.36 meters, and a transport height of 3.74 meters.

What are the undercarriage specifications of the Caterpillar 442 D 4x4 backhoe loader?

The Caterpillar 442 D 4x4 backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9x28.

What is the excavation performance of the Caterpillar 442 D 4x4 backhoe loader?

The Caterpillar 442 D 4x4 has a dredging depth of 5.89 meters and a maximum horizontal reach of 6.66 meters.

What is the tear-out force of the Caterpillar 442 D 4x4 backhoe loader?

The Caterpillar 442 D 4x4 backhoe loader has a tear-out force of 37.5 kN.

What is the maximum discharge height of the Caterpillar 442 D 4x4?

The Caterpillar 442 D 4x4 has a maximum discharge height of 4.27 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 442 D 4x4 backhoe loader?

The primary work tool bucket of the Caterpillar 442 D 4x4 has a capacity of 0.18 cubic meters and a width of 0.61 meters.
