436 C Caterpillar 436 C Specifications & Technical Data (1997—2026)

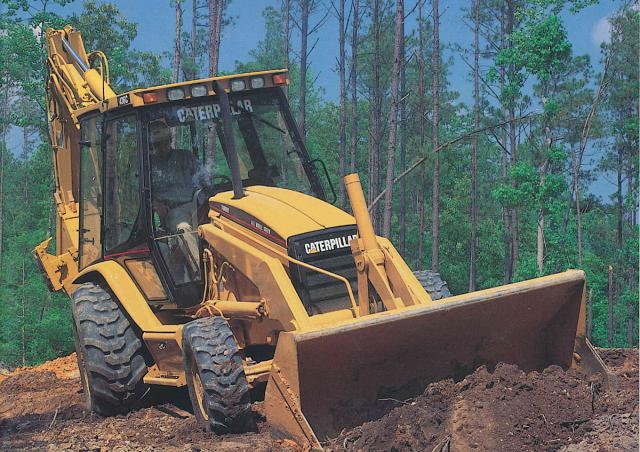

The Caterpillar 436 C is a backhoe loader manufactured by Caterpillar since 1997. It has a weight of 7.08 tons and a transport len…

The Caterpillar 436 C is a backhoe loader manufactured by Caterpillar since 1997. It has a weight of 7.08 tons and a transport length of 7.3 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 45.7 kilonewtons. It can dredge up to a depth of 4.95 meters and has a bucket width of 2.41 meters. The maximum discharge height is 2.67 meters, and it has a maximum reach horizontal of 7.36 meters. The travel speed of this backhoe loader is 33.7 kilometers per hour. It has a transport width of 2.41 meters and a transport height of 3.75 meters. The backhoe bucket capacity is 0 cubic meters, and it has a tear-out force of 64.1 kilonewtons.

Backhoe Loaders Caterpillar 436 C

Technical specs - 436 C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.08 t
Standard tyres
F: 14.5/75x16 10PR/R: 19.5x24 8PR
Bucket width
2.41 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.07-0.31 m³
Transport length
7.3 m
Transport width
2.41 m
Transport height
3.75 m
Tear-out force
45.7 kN
Tear-out force backhoe
64.1 kN
Max. Reach horizontal
7.36 m
Dredging depth
4.95 m
Max. discharge height
2.67 m
Travel speed
33.7 km/h
Engine manuf.
Caterpillar
Engine type
3054T
Engine power
66 kW
Displacement
4 l
Max. torque
345 Nm
Cylinder bore x stroke
100x127 mm

More technical details, like: drive, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 436 C FAQ

When was the Caterpillar 436 C manufactured?

The Caterpillar 436 C was first produced in 1997.

How much does the Caterpillar 436 C backhoe loader weigh?

The Caterpillar 436 C backhoe loader weighs 7.08 tons.

What are the transport dimensions of the Caterpillar 436 C backhoe loader?

The Caterpillar 436 C has a transport length of 7.3 meters, a transport width of 2.41 meters, and a transport height of 3.75 meters.

What is the travel speed of the Caterpillar 436 C backhoe loader?

The Caterpillar 436 C backhoe loader has a travel speed of 33.7 km/h.

What are the undercarriage specifications of the Caterpillar 436 C backhoe loader?

The Caterpillar 436 C backhoe loader has standard tyres with front tyres sized 14.5/75x16 10PR and rear tyres sized 19.5x24 8PR.

What are the dredging depth and maximum horizontal reach of the Caterpillar 436 C backhoe loader?

The Caterpillar 436 C backhoe loader has a dredging depth of 4.95 meters and a maximum horizontal reach of 7.36 meters.

What are the tear-out forces of the Caterpillar 436 C backhoe loader?

The Caterpillar 436 C has a tear-out force of 45.7 kN and a backhoe tear-out force of 64.1 kN.

What is the material handling capacity of the Caterpillar 436 C in terms of discharge height?

The Caterpillar 436 C has a maximum discharge height of 2.67 meters.

What are the specifications of the primary work tool on the Caterpillar 436 C backhoe loader?

The primary work tool of the Caterpillar 436 C backhoe loader has a bucket capacity of 1 cubic meter and a bucket width of 2.41 meters.
