436 Caterpillar 436 Specifications & Technical Data (1989—2026)

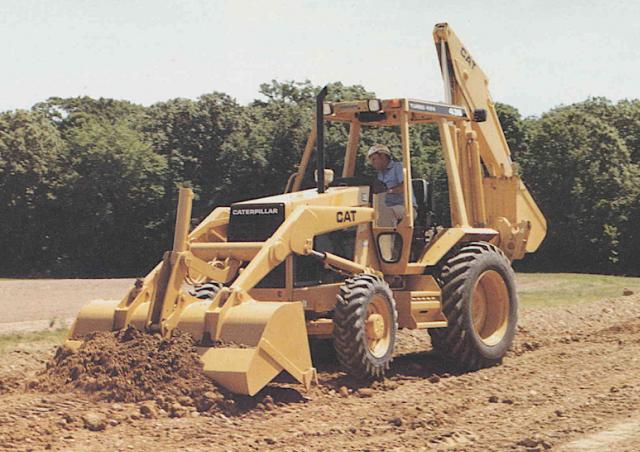

The Caterpillar 436 is a backhoe loader manufactured by Caterpillar since 1989. It has a weight of 6.83 tons and a transport lengt…

The Caterpillar 436 is a backhoe loader manufactured by Caterpillar since 1989. It has a weight of 6.83 tons and a transport length of 7.09 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 35.1 kilonewtons. It can dredge up to a depth of 4.9 meters and has a bucket width of 2.26 meters. The maximum discharge height is 2.58 meters, and it has a maximum reach horizontal of 7.19 meters. The travel speed of this backhoe loader is 29.7 kilometers per hour. It has a transport width of 2.26 meters and a transport height of 3.81 meters. The backhoe bucket capacity is 0 cubic meters, and it has a tear-out force of 48.9 kilonewtons.

Backhoe Loaders Caterpillar 436

Technical specs - 436 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.83 t
Standard tyres
F: 11.00-16 12PR/R: 16.9-28 10PR
Bucket width
2.26 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.16-0.3 m³
Transport length
7.09 m
Transport width
2.26 m
Transport height
3.81 m
Tear-out force
35.1 kN
Tear-out force backhoe
48.9 kN
Max. Reach horizontal
7.19 m
Dredging depth
4.9 m
Max. discharge height
2.58 m
Travel speed
29.7 km/h
Engine manuf.
Perkins
Engine type
4.236
Engine power
61.6 kW
Displacement
3.86 l
No. of cylinders
4
Cylinder bore x stroke
98.4x127 mm

More technical details, like: drive, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 436 FAQ

When was the Caterpillar 436 manufactured?

The Caterpillar 436 was first produced in 1989.

How much does the Caterpillar 436 backhoe loader weigh?

The Caterpillar 436 backhoe loader weighs 6.83 tons.

What are the transport dimensions of the Caterpillar 436 backhoe loader?

The Caterpillar 436 backhoe loader has a transport length of 7.09 meters, a transport width of 2.26 meters, and a transport height of 3.81 meters.

What is the travel speed of the Caterpillar 436 backhoe loader?

The Caterpillar 436 backhoe loader has a travel speed of 29.7 km/h.

What are the undercarriage specifications of the Caterpillar 436 backhoe loader?

The Caterpillar 436 backhoe loader has standard tyres sized Front: 11.00-16 12PR and Rear: 16.9-28 10PR.

What is the excavation performance of the Caterpillar 436 backhoe loader?

The Caterpillar 436 backhoe loader has a dredging depth of 4.9 meters and a maximum horizontal reach of 7.19 meters.

What are the tear-out forces of the Caterpillar 436 backhoe loader?

The Caterpillar 436 has a tear-out force of 35.1 kN and a backhoe tear-out force of 48.9 kN.

What is the maximum discharge height of the Caterpillar 436 backhoe loader?

The Caterpillar 436 backhoe loader has a maximum discharge height of 2.58 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 436 backhoe loader?

The primary work tool bucket of the Caterpillar 436 has a capacity of 1 cubic meter and a width of 2.26 meters.
