432 Caterpillar 432 Specifications & Technical Data (2020—2026)

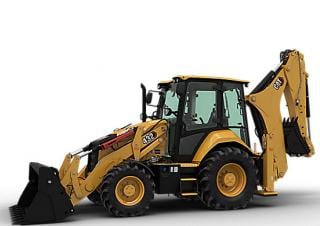

The Caterpillar 432 Backhoe Loader is a construction machine that has been manufactured since 2020. It has a weight of 8.3 tons an…

The Caterpillar 432 Backhoe Loader is a construction machine that has been manufactured since 2020. It has a weight of 8.3 tons and a transport length of 5.9 meters. The bucket capacity is 1.03 cubic meters, and it has a tear-out force of 54.8 kilonewtons. The dredging depth is 4.28 meters, and the bucket width is 2.41 meters. The maximum discharge height is 2.63 meters, and the maximum reach horizontal is 5.628 meters. It has a travel speed of 40 kilometers per hour. The transport width is 2.4 meters, and the transport height is 3.8 meters. The tear-out force for the backhoe is 63.4 kilonewtons. It is equipped with special features such as air conditioning, a diesel particulate filter, and outrigger stabilizers.

Backhoe Loaders Caterpillar 432

Technical specs - 432 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.3 t
Standard tyres
VR 12.5/80-18 HR 16.9-28
Bucket width
2.41 m
Bucket capacity
1 m³
Drive
A
Transport length
5.9 m
Transport width
2.4 m
Transport height
3.8 m
Tear-out force
54.8 kN
Tear-out force backhoe
63.4 kN
Max. Reach horizontal
5.628 m
Dredging depth
4.28 m
Max. discharge height
2.63 m
Travel speed
40 km/h
Engine manuf.
Caterpillar
Engine type
C3.6
Engine power
82 kW
Displacement
3.6 l
Revolutions at max torque
2200 rpm
Emission level
V

More technical details, like: bucket capacity backhoe, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
Yes
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar 432 FAQ

When was the Caterpillar 432 manufactured?

The Caterpillar 432 was first produced in 2020.

How much does the Caterpillar 432 backhoe loader weigh?

The Caterpillar 432 backhoe loader weighs 8.3 tons.

What are the transport dimensions of the Caterpillar 432 backhoe loader?

The Caterpillar 432 backhoe loader has a transport length of 5.9 meters, a transport width of 2.4 meters, and a transport height of 3.8 meters.

What is the travel speed of the Caterpillar 432 backhoe loader?

The Caterpillar 432 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 432 backhoe loader?

The Caterpillar 432 backhoe loader has an all-wheel drive system and standard tyres sized Front: 12.5/80-18 and Rear: 16.9-28.

What is the excavation performance of the Caterpillar 432 backhoe loader?

The Caterpillar 432 backhoe loader has a dredging depth of 4.28 meters and a maximum horizontal reach of 5.628 meters.

What are the tear-out forces of the Caterpillar 432 backhoe loader?

The Caterpillar 432 backhoe loader has a tear-out force of 54.8 kN and a tear-out force for the backhoe of 63.4 kN.

What is the maximum discharge height for material handling of the Caterpillar 432 backhoe loader?

The Caterpillar 432 backhoe loader has a maximum discharge height of 2.63 meters for material handling.

What are the specifications of the primary work tool bucket on the Caterpillar 432 backhoe loader?

The primary work tool bucket of the Caterpillar 432 backhoe loader has a capacity of 1 cubic meter and a width of 2.41 meters.

How much is a Caterpillar 432 Backhoe loader (2020u20132025) worth?
