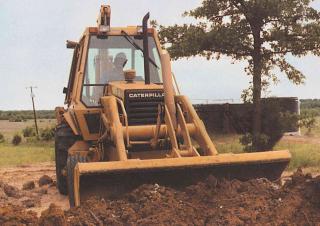

428 Caterpillar 428 Specifications & Technical Data (1987—1990)
Technical specs - 428 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.97 t
- Standard tyres
- F:11L-16/R:16.9-28
- Bucket width
- 2.39 m
- Bucket capacity
- 1.05 m³
- Transport width
- 2.39 m
- Tear-out force
- 35.9 kN
- Tear-out force backhoe
- 46.8 kN
- Max. Reach horizontal
- 5.41 m
- Dredging depth
- 4.17 m
- Max. discharge height
- 2.62 m
- Travel speed
- 29.1 km/h
- Engine manuf.
- N/A
- Engine type
- N/A
- Engine power
- 52.5 kW
More technical details, like: bucket capacity backhoe, drive, transport length, transport height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
Download specalog and datasheets (PDF)
Caterpillar 428 FAQ
How much does the Caterpillar 428 backhoe loader weigh?
What is the transport width of the Caterpillar 428 backhoe loader?
What is the travel speed of the Caterpillar 428 backhoe loader?
What are the undercarriage specifications of the Caterpillar 428 backhoe loader?
What are the dredging depth and maximum horizontal reach of the Caterpillar 428 backhoe loader?
What are the tear-out force ratings of the Caterpillar 428 backhoe loader?
What is the maximum discharge height of the Caterpillar 428 backhoe loader?
What are the specifications of the primary work tool on the Caterpillar 428 backhoe loader?
How much is a Caterpillar 428 Backhoe loader (1987u20131990) worth?
