420F Caterpillar 420F Specifications & Technical Data (2012—2026)

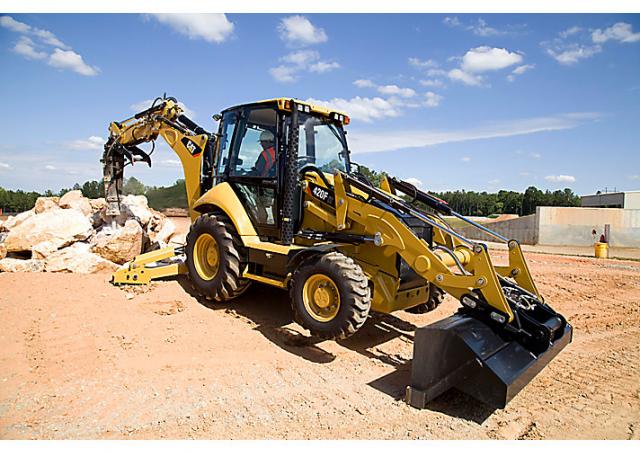

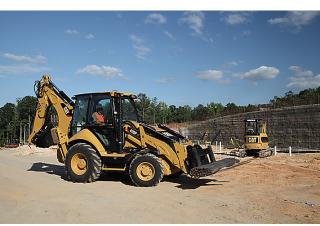

The Caterpillar 420F is a backhoe loader manufactured by Caterpillar since 2012. It has a weight of 11 tons and a transport length…

The Caterpillar 420F is a backhoe loader manufactured by Caterpillar since 2012. It has a weight of 11 tons and a transport length of 7.169 meters. The bucket capacity is 0.96 cubic meters, with a tear-out force of 51.1 kilonewtons. It can dredge up to a depth of 4.36 meters and has a bucket width of 2.262 meters. The maximum discharge height is 2.746 meters, and it has a maximum reach horizontal of 5.612 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.322 meters and a transport height of 3.577 meters. Additionally, it is equipped with a diesel particulate filter and outrigger stabilizers. The backhoe tear-out force is 62.66 kilonewtons.

420F

Years of manufacture: 2012—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 420F Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11 t

Standard tyres: 11L-16 (12 ply) F-3/19.5L-24 (12 ply) R4 ATU

Bucket width: 2.262 m

Bucket capacity: 0.96 m³

Drive: A/H

Transport length: 7.169 m

Transport width: 2.322 m

Transport height: 3.577 m

Tear-out force: 51.1 kN

Tear-out force backhoe: 62.66 kN

Max. Reach horizontal: 5.612 m

Dredging depth: 4.36 m

Max. discharge height: 2.746 m

Travel speed: 40 km/h

Engine manuf.: Caterpillar

Engine type: 3054C DIT

Engine power: 70 kW

Displacement: 4.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 438 Nm

Cylinder bore x stroke: 105x127 mm

Emission level: U.S. EPA Tier 2/EU Stage II

More technical details, like: bucket capacity backhoe, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: Yes
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar 420F FAQ

When was the Caterpillar 420F backhoe loader first manufactured?

The Caterpillar 420F backhoe loader was first produced in 2012.

How much does the Caterpillar 420F backhoe loader weigh?

The Caterpillar 420F backhoe loader weighs 11 tons.

What are the transport dimensions of the Caterpillar 420F backhoe loader?

The Caterpillar 420F has a transport length of 7.17 meters, a transport width of 2.32 meters, and a transport height of 3.58 meters.

What is the travel speed of the Caterpillar 420F backhoe loader?

The Caterpillar 420F backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 420F backhoe loader?

The Caterpillar 420F backhoe loader has an all-wheel, rear wheel drive and is equipped with standard tyres sized 11L-16 (12 ply) F-3 and 19.5L-24 (12 ply) R4 ATU.

What are the excavation specifications of the Caterpillar 420F backhoe loader?

The Caterpillar 420F backhoe loader has a dredging depth of 4.36 meters and a maximum horizontal reach of 5.612 meters.

What are the tear-out forces of the Caterpillar 420F backhoe loader?

The Caterpillar 420F has a tear-out force of 51.1 kN and a backhoe tear-out force of 62.66 kN.

What is the maximum discharge height of the Caterpillar 420F?

The Caterpillar 420F has a maximum discharge height of 2.75 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 420F?

The primary work tool bucket of the Caterpillar 420F has a capacity of 0.96 cubic meters and a width of 2.26 meters.
