416F2 Caterpillar 416F2 Specifications & Technical Data (2017—2026)

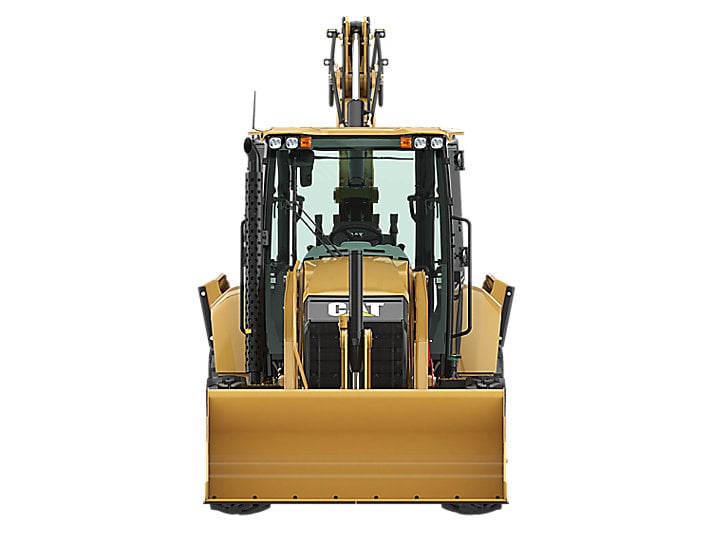

The Caterpillar 416F2 is a backhoe loader that has been manufactured since 2017. It has a weight of 7.21 tons and a transport leng…

The Caterpillar 416F2 is a backhoe loader that has been manufactured since 2017. It has a weight of 7.21 tons and a transport length of 7.08 meters. The bucket capacity is 0.76 cubic meters, and it has a tear-out force of 47.9 kN. The dredging depth is 4.35 meters, and the bucket width is 2.26 meters. The maximum discharge height is 2.82 meters, and the maximum reach horizontal is 5.61 meters. It has a travel speed of 36 km/h. The transport width is 2.32 meters, and the transport height is 3.58 meters. The backhoe has a tear-out force of 59.1 kN. It is equipped with outrigger stabilizers.

416F2

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 416F2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.21 t

Standard tyres: 11L-16 (12 ply) F-3/19.5L-24 (12 ply) R4 ATU

Bucket width: 2.26 m

Bucket capacity: 0.76 m³

Drive: A/H

Transport length: 7.08 m

Transport width: 2.32 m

Transport height: 3.58 m

Tear-out force: 47.9 kN

Tear-out force backhoe: 59.1 kN

Max. Reach horizontal: 5.61 m

Dredging depth: 4.35 m

Max. discharge height: 2.82 m

Travel speed: 36 km/h

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 65 kW

Displacement: 4.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 438 Nm

Cylinder bore x stroke: 105x127 mm

Emission level: Tier 4 Final

More technical details, like: bucket capacity backhoe, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar 416F2 FAQ

When was the Caterpillar 416F2 manufactured?

The Caterpillar 416F2 was first produced in 2017.

How much does the Caterpillar 416F2 backhoe loader weigh?

The Caterpillar 416F2 backhoe loader weighs 7.21 tons.

What are the transport dimensions of the Caterpillar 416F2 backhoe loader?

The Caterpillar 416F2 has a transport length of 7.08 meters, a transport width of 2.32 meters, and a transport height of 3.58 meters.

What is the travel speed of the Caterpillar 416F2 backhoe loader?

The Caterpillar 416F2 backhoe loader has a travel speed of 36 km/h.

What are the undercarriage specifications of the Caterpillar 416F2 backhoe loader?

The Caterpillar 416F2 features an all-wheel, rear wheel drive system and standard tyres sized 11L-16 (12 ply) F-3 and 19.5L-24 (12 ply) R4 ATU.

What are the excavation performance specifications of the Caterpillar 416F2 backhoe loader?

The Caterpillar 416F2 backhoe loader has a dredging depth of 4.35 meters and a maximum horizontal reach of 5.61 meters.

What are the tear-out forces of the Caterpillar 416F2 backhoe loader?

The Caterpillar 416F2 has a tear-out force of 47.9 kN and a backhoe tear-out force of 59.1 kN.

What is the maximum discharge height of the Caterpillar 416F2?

The Caterpillar 416F2 has a maximum discharge height of 2.82 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 416F2 backhoe loader?

The primary work tool bucket on the Caterpillar 416F2 has a capacity of 0.76 cubic meters and a width of 2.26 meters.
