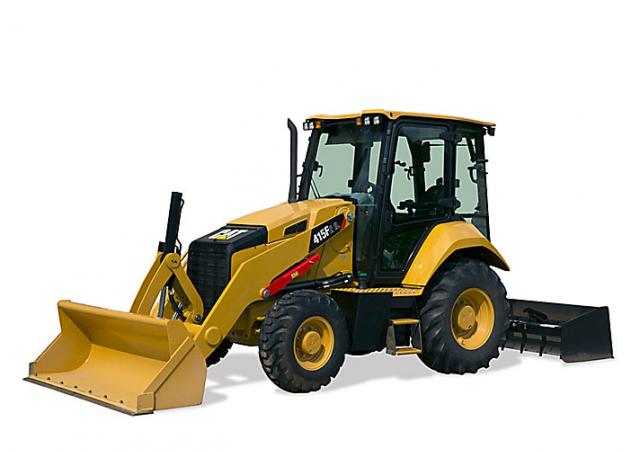

415F2 IL Caterpillar 415F2 IL Specifications & Technical Data (2017—2026)

The Caterpillar 415F2 IL is a backhoe loader manufactured since 2017. It has a weight of 6.37 tons and a transport length of 6.31 …

The Caterpillar 415F2 IL is a backhoe loader manufactured since 2017. It has a weight of 6.37 tons and a transport length of 6.31 meters. The bucket capacity is 0.76 cubic meters, with a tear-out force of 59.1 kilonewtons. It can dredge up to a depth of 4.35 meters and has a bucket width of 2.26 meters. The maximum discharge height is 2.82 meters, and it can reach horizontally up to 5.61 meters. The transport width is 2.32 meters, and the transport height is 3.58 meters.

Backhoe Loaders Caterpillar 415F2 IL

Technical specs - 415F2 IL Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.37 t
Standard tyres
2.5 80/16.9/16.9-24
Bucket width
2.26 m
Bucket capacity
0.76 m³
Drive
A/H
Transport length
6.31 m
Transport width
2.32 m
Transport height
3.58 m
Tear-out force
59.1 kN
Max. Reach horizontal
5.61 m
Dredging depth
4.35 m
Max. discharge height
2.82 m
Engine manuf.
Caterpillar
Engine type
C3.4B
Engine power
55 kW
Displacement
3.4 l
Revolutions at max torque
1800 rpm
Max. torque
416 Nm
Cylinder bore x stroke
99x110 mm
Emission level
Tier 4 Final/Stage IV

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 415F2 IL FAQ

When was the Caterpillar 415F2 IL manufactured?

The Caterpillar 415F2 IL was first produced in 2017.

How much does the Caterpillar 415F2 IL backhoe loader weigh?

The Caterpillar 415F2 IL backhoe loader weighs 6.37 tons.

What are the transport dimensions of the Caterpillar 415F2 IL backhoe loader?

The Caterpillar 415F2 IL has a transport length of 6.31 meters, a transport width of 2.32 meters, and a transport height of 3.58 meters.

What are the undercarriage specifications of the Caterpillar 415F2 IL?

The Caterpillar 415F2 IL has all-wheel, rear wheel drive and standard tyres sized 2.5 80/16.9/16.9-24.

What are the dredging depth and maximum horizontal reach of the Caterpillar 415F2 IL backhoe loader?

The Caterpillar 415F2 IL has a dredging depth of 4.35 meters and a maximum horizontal reach of 5.61 meters.

What are the power ratings of the Caterpillar 415F2 IL backhoe loader?

There are no power rating specifications available for the Caterpillar 415F2 IL backhoe loader in the provided data.

What is the material handling capacity of the Caterpillar 415F2 IL in terms of maximum discharge height?

The Caterpillar 415F2 IL has a maximum discharge height of 2.82 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 415F2 IL?

The primary work tool bucket of the Caterpillar 415F2 IL has a capacity of 0.76 cubic meters and a width of 2.26 meters.

How much is a Caterpillar 415F2 IL Backhoe loader (2017u20132025) worth?

The residual value of the Caterpillar 415F2 IL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
