415F2 Caterpillar 415F2 Specifications & Technical Data (2017—2026)

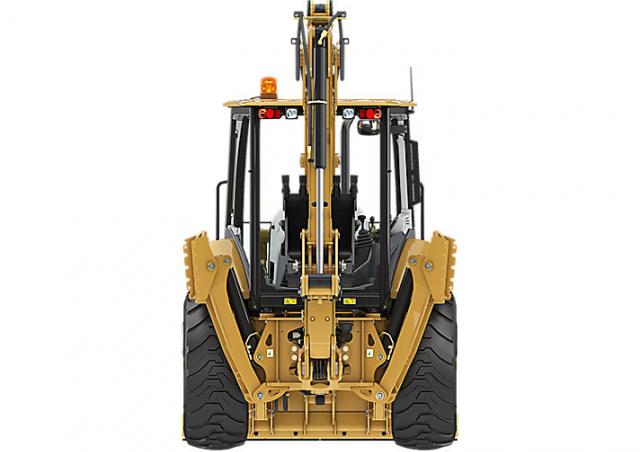

The Caterpillar 415F2 is a backhoe loader manufactured by Caterpillar since 2017. It has a weight of 6.9 tons and a transport leng…

The Caterpillar 415F2 is a backhoe loader manufactured by Caterpillar since 2017. It has a weight of 6.9 tons and a transport length of 7.08 meters. The bucket capacity is 0.76 cubic meters, with a tear-out force of 47.9 kilonewtons. It can dredge up to a depth of 4.35 meters and has a bucket width of 2.26 meters. The maximum discharge height is 2.82 meters, and it has a maximum reach horizontal of 5.61 meters. The travel speed of this backhoe loader is 36 kilometers per hour. It has a transport width of 2.32 meters and a transport height of 3.58 meters. Additionally, it is equipped with outrigger stabilizers. The backhoe tear-out force is 59.1 kilonewtons.

415F2

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 415F2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.9 t

Standard tyres: 11L-16 (12 ply) F-3/19.5L-24 (12 ply) R4 ATU

Bucket width: 2.26 m

Bucket capacity: 0.76 m³

Drive: A/H

Transport length: 7.08 m

Transport width: 2.32 m

Transport height: 3.58 m

Tear-out force: 47.9 kN

Tear-out force backhoe: 59.1 kN

Max. Reach horizontal: 5.61 m

Dredging depth: 4.35 m

Max. discharge height: 2.82 m

Travel speed: 36 km/h

Engine manuf.: Caterpillar

Engine type: C3.4B

Engine power: 55 kW

Displacement: 3.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 416 Nm

Cylinder bore x stroke: 99x110 mm

Emission level: Tier 4 Final

More technical details, like: bucket capacity backhoe, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar 415F2 FAQ

When was the Caterpillar 415F2 manufactured?

The Caterpillar 415F2 was first produced in 2017.

How much does the Caterpillar 415F2 backhoe loader weigh?

The Caterpillar 415F2 backhoe loader weighs 6.9 tons.

What are the transport dimensions of the Caterpillar 415F2 backhoe loader?

The Caterpillar 415F2 has a transport length of 7.08 meters, a transport width of 2.32 meters, and a transport height of 3.58 meters.

What is the travel speed of the Caterpillar 415F2 backhoe loader?

The Caterpillar 415F2 backhoe loader has a travel speed of 36 km/h.

What are the undercarriage specifications of the Caterpillar 415F2 backhoe loader?

The Caterpillar 415F2 backhoe loader has an All-wheel, Rear wheel drive and comes equipped with standard tyres sized 11L-16 (12 ply) F-3/19.5L-24 (12 ply) R4 ATU.

What are the excavation performance specifications of the Caterpillar 415F2 backhoe loader?

The Caterpillar 415F2 backhoe loader has a dredging depth of 4.35 meters and a maximum horizontal reach of 5.61 meters.

What are the tear-out forces of the Caterpillar 415F2 backhoe loader?

The Caterpillar 415F2 has a tear-out force of 47.9 kN and a backhoe tear-out force of 59.1 kN, respectively.

What is the material handling capacity of the Caterpillar 415F2 in terms of discharge height?

The Caterpillar 415F2 has a maximum discharge height of 2.82 meters.

What are the specifications of the primary work tool on the Caterpillar 415F2 backhoe loader?

The primary work tool of the Caterpillar 415F2 backhoe loader has a bucket capacity of 0.76 cubic meters and a bucket width of 2.26 meters.
