W-7 Case W-7 Specifications & Technical Data (1965—2010)

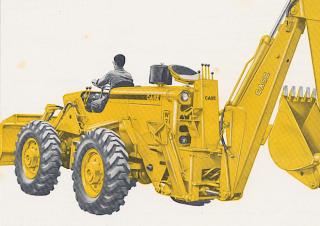

The Case W-7 is a backhoe loader manufactured by Case since 1965. It has a weight of 6.6 tons and a transport length of 7.3 meters…

The Case W-7 is a backhoe loader manufactured by Case since 1965. It has a weight of 6.6 tons and a transport length of 7.3 meters. The bucket capacity is 1.53 cubic meters, with a dredging depth of 4.3 meters and a bucket width of 2.33 meters. The maximum discharge height is 3.45 meters, and it has a maximum reach horizontal of 5.12 meters. The travel speed of this backhoe loader is 35 kilometers per hour. It has a transport width of 2.07 meters and a transport height of 3.16 meters. The tear-out force of the backhoe is 39 kilonewtons.

W-7

Years of manufacture: 1965—2010

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - W-7 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.6 t

Standard tyres: 13.00x24. 8-ply

Bucket width: 2.33 m

Bucket capacity: 1.53 m³

Transport length: 7.3 m

Transport width: 2.07 m

Transport height: 3.16 m

Tear-out force backhoe: 39 kN

Max. Reach horizontal: 5.12 m

Dredging depth: 4.3 m

Max. discharge height: 3.45 m

Travel speed: 35 km/h

Engine manuf.: Case

Engine type: 301D

Engine power: 60 kW

Displacement: 4.9 l

Revolutions at max torque: 1425 rpm

Max. torque: 325 Nm

No. of cylinders: 4

Cylinder bore x stroke: 102x120 mm

More technical details, like: bucket capacity backhoe, drive, tear-out force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

W-7 Case Specification for North America (EN)

Case W-7 FAQ

When was the Case W-7 manufactured?

The Case W-7 was first produced in 1965.

How much does the Case W-7 backhoe loader weigh?

The Case W-7 backhoe loader weighs 6.6 tons.

What are the transport dimensions of the Case W-7 backhoe loader?

The Case W-7 has a transport length of 7.3 meters, a transport width of 2.07 meters, and a transport height of 3.16 meters.

What is the travel speed of the Case W-7 backhoe loader?

The Case W-7 backhoe loader has a travel speed of 35 km/h.

What are the undercarriage specifications of the Case W-7 backhoe loader?

The Case W-7 backhoe loader is equipped with standard tyres sized 13.00x24 with an 8-ply rating.

What are the excavation performance specifications of the Case W-7 backhoe loader?

The Case W-7 backhoe loader has a dredging depth of 4.3 meters and a maximum horizontal reach of 5.12 meters.

What is the tear-out force of the Case W-7 backhoe loader?

The Case W-7 backhoe loader has a tear-out force of 39 kN.

What is the maximum discharge height of the Case W-7?

The Case W-7 has a maximum discharge height of 3.45 meters.

What are the specifications of the primary work tool on the Case W-7 backhoe loader?

The primary work tool of the Case W-7 backhoe loader has a bucket capacity of 1.53 cubic meters and a bucket width of 2.33 meters.

How much is a Case W-7 Backhoe loader (1965u20132025) worth?

The residual value of the Case W-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case W-7 overview

Backhoe and loader

Features

Prime mover — Case-built 80 HP gasoline or diesel engine famous for economy; power steer, power shift, power brakes for operator ease and big production. Power transfer differentials for maximum traction. 24° steering axle oscillation for smoother rides, maximum traction. Loader — 40° bucket rollback at ground level, 7000 lb. tipping load, 3500 lb. operating load. Buckets available to 2 cu. yds. Backhoe — 14' digging depth or 14'/16' digging depth with extendable boom. Foot operated 190° 'feathered' swing — frees hands for boom and bucket operation, increases production. 20,000 lb. pryout force can be generated, depending on location of fulcrum under bucket. Exclusive regenerative hydraulic design eliminates hydraulic lag, gives fastest dig-swing-dump cycle. One hydraulic system serves both backhoe and loader. Entire unit is Case-built.

Loader/Backhoe Overview

This is an integral Case-built Loader/Backhoe that handles the widest variety of loading, leveling, materials handling, excavating, trenching and digging jobs with efficiency. The loader handles up to 2 cu. yd. buckets with real production loader speeds — the Case backhoe is the fastest and most productive on the market. The prime mover is a 4-wheel drive Case-built unit with heavy-duty, big displacement Case 80 HP gasoline or diesel engine — torque converter — power shift transmission — power steer — and approximately 14,200 lbs. of muscle, including loader and backhoe. The entire package is available at a comparatively low cost — for just slightly more than 'big' 2-wheel drive outfits — and the Case can do so much more!
