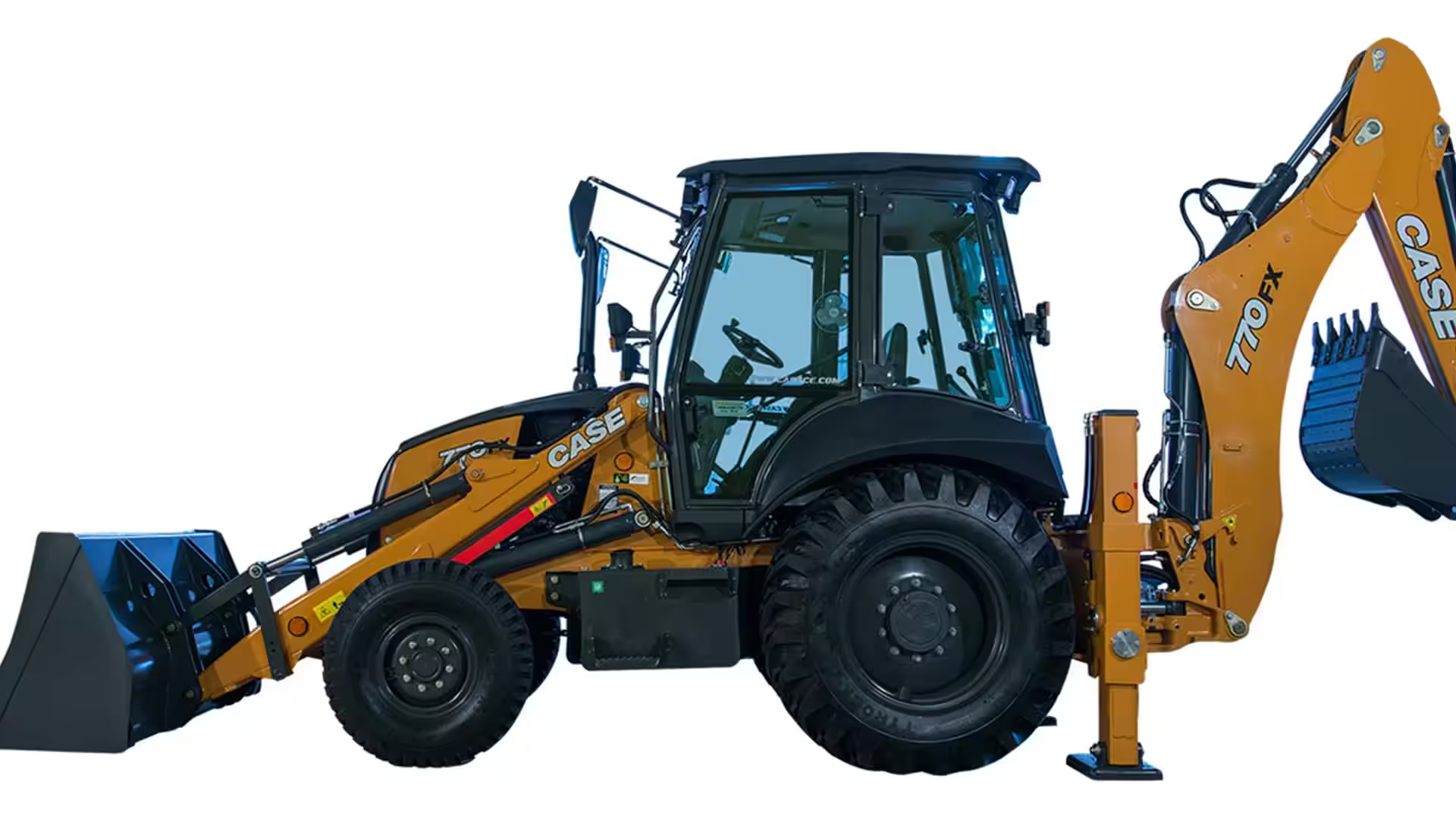

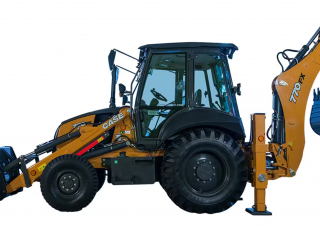

770FX+ Case 770FX+ Specifications & Technical Data (2022—2026)

The Case 770FX+ is a backhoe loader manufactured by Case since 2022. It has a weight of 7.92 tons and a transport length of 5.96 m…

The Case 770FX+ is a backhoe loader manufactured by Case since 2022. It has a weight of 7.92 tons and a transport length of 5.96 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 55.1 kilonewtons. It can dredge up to a depth of 4.7 meters and has a bucket width of 2.3 meters. The maximum discharge height is 2.73 meters, and it can reach horizontally up to 5.9 meters. The travel speed is 39.2 kilometers per hour. The transport width is 2.27 meters, and the transport height is 3.85 meters. Additionally, it has a backhoe bucket capacity of 0.3 cubic meters and a tear-out force of 37.1 kilonewtons.

770FX+

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 770FX+ Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.92 t

Standard tyres: F: 9.0 x 16 – 16 PR / R: 16.9 x 28 – 12 PR

Bucket width: 2.3 m

Bucket capacity: 1.1 m³

Bucket capacity backhoe: 0.3 m³

Transport length: 5.96 m

Transport width: 2.27 m

Transport height: 3.85 m

Tear-out force: 55.1 kN

Tear-out force backhoe: 37.1 kN

Max. Reach horizontal: 5.9 m

Dredging depth: 4.7 m

Max. discharge height: 2.73 m

Travel speed: 39.2 km/h

Model series: FX

Engine manuf.: FPT

Engine type: F5HFL463A*W

Engine power: 55 kW

Displacement: 3.4 l

Max. torque: 325 Nm

Emission level: Tier 4B

More technical details, like: drive, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

770FX+ Case Specification for Asia Pacific (EN)

Case 770FX+ FAQ

When was the Case 770FX+ manufactured?

The Case 770FX+ was first produced in 2022.

How much does the Case 770FX+ backhoe loader weigh?

The Case 770FX+ backhoe loader weighs 7.92 tons.

What are the transport dimensions of the Case 770FX+ backhoe loader?

The Case 770FX+ has a transport length of 5.96 meters, a transport width of 2.27 meters, and a transport height of 3.85 meters.

What is the travel speed of the Case 770FX+ backhoe loader?

The Case 770FX+ backhoe loader has a travel speed of 39.2 km/h.

What are the undercarriage tyre specifications of the Case 770FX+ backhoe loader?

The Case 770FX+ is equipped with standard tyres sized Front: 9.0 x 16 u2013 16 PR and Rear: 16.9 x 28 u2013 12 PR.

What are the excavation performance specifications of the Case 770FX+ backhoe loader?

The Case 770FX+ backhoe loader has a dredging depth of 4.7 meters and a maximum horizontal reach of 5.9 meters.

What are the tear-out forces of the Case 770FX+ backhoe loader?

The Case 770FX+ has a Tear-out force of 55.1 kN and a Tear-out force backhoe of 37.1 kN.

What is the maximum discharge height of the Case 770FX+ backhoe loader?

The Case 770FX+ backhoe loader has a maximum discharge height of 2.73 meters.

What are the specifications of the primary work tool on the Case 770FX+ backhoe loader?

The Case 770FX+ has a bucket capacity of 1.1 cubic meters, a bucket width of 2.3 meters, and a backhoe bucket capacity of 0.3 cubic meters.
