770FX Case 770FX Specifications & Technical Data (2022—2026)

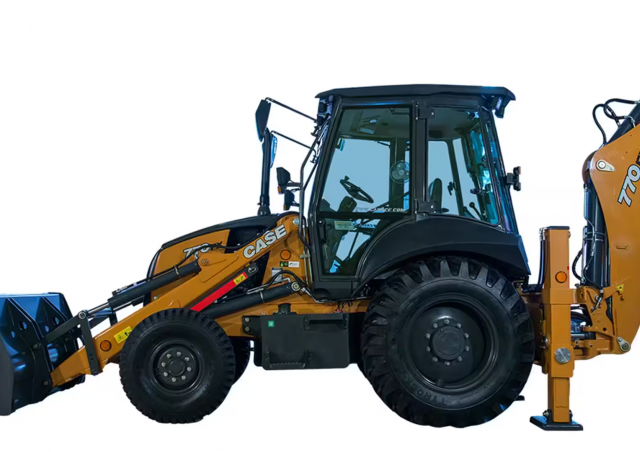

The Case 770FX is a backhoe loader manufactured by Case since 2022. It has a weight of 7.6 tons and a transport length of 5.88 met…

The Case 770FX is a backhoe loader manufactured by Case since 2022. It has a weight of 7.6 tons and a transport length of 5.88 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 51 kilonewtons. It can dredge up to a depth of 4.4 meters and has a bucket width of 2.3 meters. The maximum discharge height is 2.73 meters, and it has a maximum reach horizontal of 5.62 meters. The travel speed of this backhoe loader is 39.2 kilometers per hour. It has a transport width of 2.27 meters and a transport height of 3.85 meters. The backhoe bucket capacity is 0.26 cubic meters, and it has a tear-out force of 29.72 kilonewtons.

Backhoe Loaders Case 770FX

Technical specs - 770FX Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.6 t
Standard tyres
F: 9.0 x 16 – 16 PR / R: 16.9 x 28 – 12 PR
Bucket width
2.3 m
Bucket capacity
1.1 m³
Bucket capacity backhoe
0.26 m³
Transport length
5.88 m
Transport width
2.27 m
Transport height
3.85 m
Tear-out force
51 kN
Tear-out force backhoe
29.72 kN
Max. Reach horizontal
5.62 m
Dredging depth
4.4 m
Max. discharge height
2.73 m
Travel speed
39.2 km/h
Model series
FX
Engine manuf.
FPT
Engine type
F5HFL463A*W
Engine power
55 kW
Displacement
3.4 l
Max. torque
325 Nm
Emission level
Tier 4B

More technical details, like: drive, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 770FX FAQ

When was the Case 770FX backhoe loader first manufactured?

The Case 770FX backhoe loader was first produced in 2022.

How much does the Case 770FX backhoe loader weigh?

The Case 770FX backhoe loader weighs 7.6 tons.

What are the transport dimensions of the Case 770FX backhoe loader?

The Case 770FX has a transport length of 5.88 meters, a transport width of 2.27 meters, and a transport height of 3.85 meters.

What is the travel speed of the Case 770FX backhoe loader?

The Case 770FX backhoe loader has a travel speed of 39.2 km/h.

What are the undercarriage tyre specifications of the Case 770FX backhoe loader?

The Case 770FX backhoe loader has standard tyres sized Front: 9.0 x 16 u2013 16 PR and Rear: 16.9 x 28 u2013 12 PR.

What are the excavation performance specifications of the Case 770FX backhoe loader?

The Case 770FX backhoe loader has a dredging depth of 4.4 meters and a maximum horizontal reach of 5.62 meters.

What are the tear-out forces of the Case 770FX backhoe loader?

The Case 770FX has a tear-out force of 51 kN and a backhoe tear-out force of 29.72 kN.

What is the material handling capacity of the Case 770FX in terms of maximum discharge height?

The Case 770FX has a maximum discharge height of 2.73 meters.

What are the primary work tool specifications of the Case 770FX backhoe loader?

The Case 770FX features a front bucket with a capacity of 1.1 cubic meters and a width of 2.3 meters, and a backhoe bucket with a capacity of 0.26 cubic meters.
