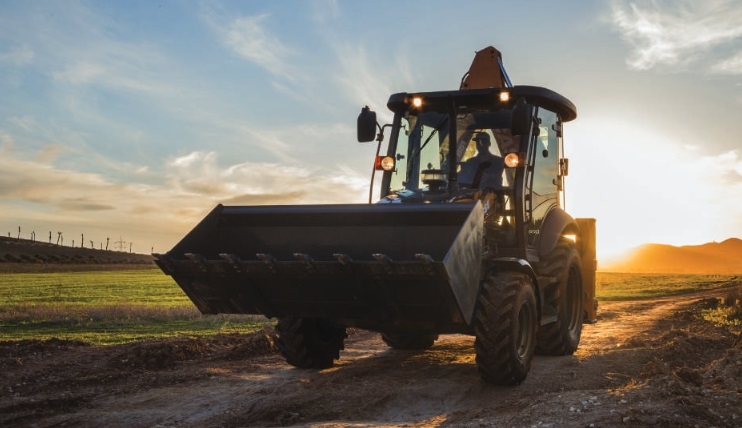

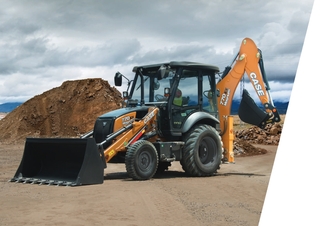

770EX Magnum Case 770EX Magnum Specifications & Technical Data (2021—2026)

The Case 770EX Magnum is a backhoe loader manufactured by Case since 2021. It has a weight of 7.71 tons and a bucket capacity of 1…

The Case 770EX Magnum is a backhoe loader manufactured by Case since 2021. It has a weight of 7.71 tons and a bucket capacity of 1.1 cubic meters. The tear-out force is 55 kilonewtons, and it can dredge up to a depth of 4.5 meters. The bucket width is 2.3 meters, and the maximum discharge height is 3.3 meters. It has a maximum reach horizontal of 5.8 meters and a travel speed of 39.2 kilometers per hour. The transport width is 2.3 meters, and the transport height is 3.9 meters. The backhoe bucket capacity is 0.3 cubic meters, with a tear-out force of 42 kilonewtons.

770EX Magnum

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 770EX Magnum Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.71 t

Standard tyres: F: 9.0x16 - 16 PR / R: 16.9x28 - 12 PR

Bucket width: 2.3 m

Bucket capacity: 1.1 m³

Bucket capacity backhoe: 0.3 m³

Transport width: 2.3 m

Transport height: 3.9 m

Tear-out force: 55 kN

Tear-out force backhoe: 42 kN

Max. Reach horizontal: 5.8 m

Dredging depth: 4.5 m

Max. discharge height: 3.3 m

Travel speed: 39.2 km/h

Model series: EX

Engine manuf.: FPT

Engine type: S8000

Engine power: 64 kW

Displacement: 3.9 l

Revolutions at max torque: 1300 rpm

Max. torque: 402 Nm

Cylinder bore x stroke: 104x115 mm

More technical details, like: drive, transport length, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

770EX Magnum Case Specification for Global (EN)

Case 770EX Magnum FAQ

When was the Case 770EX Magnum manufactured?

The Case 770EX Magnum was first produced in 2021.

How much does the Case 770EX Magnum weigh?

The Case 770EX Magnum weighs 7.71 tons.

What are the transport dimensions of the Case 770EX Magnum backhoe loader?

The Case 770EX Magnum has a transport width of 2.3 meters and a transport height of 3.9 meters.

What is the travel speed of the Case 770EX Magnum backhoe loader?

The travel speed of the Case 770EX Magnum backhoe loader is 39.2 km/h.

What are the undercarriage specifications of the Case 770EX Magnum backhoe loader?

The Case 770EX Magnum is equipped with standard tyres sized Front: 9.0x16 - 16 PR and Rear: 16.9x28 - 12 PR.

What are the excavation performance specifications of the Case 770EX Magnum backhoe loader?

The Case 770EX Magnum has a dredging depth of 4.5 meters and a maximum horizontal reach of 5.8 meters.

What are the tear-out forces of the Case 770EX Magnum backhoe loader?

The Case 770EX Magnum has a tear-out force of 55 kN and a backhoe tear-out force of 42 kN.

What is the maximum discharge height of the Case 770EX Magnum?

The Case 770EX Magnum has a maximum discharge height of 3.3 meters.

What are the primary work tool specifications of the Case 770EX Magnum backhoe loader?

The Case 770EX Magnum has a loader bucket capacity of 1.1 cubic meters with a width of 2.3 meters, and a backhoe bucket capacity of 0.3 cubic meters.
