695SV Case 695SV Specifications & Technical Data (2021—2025)

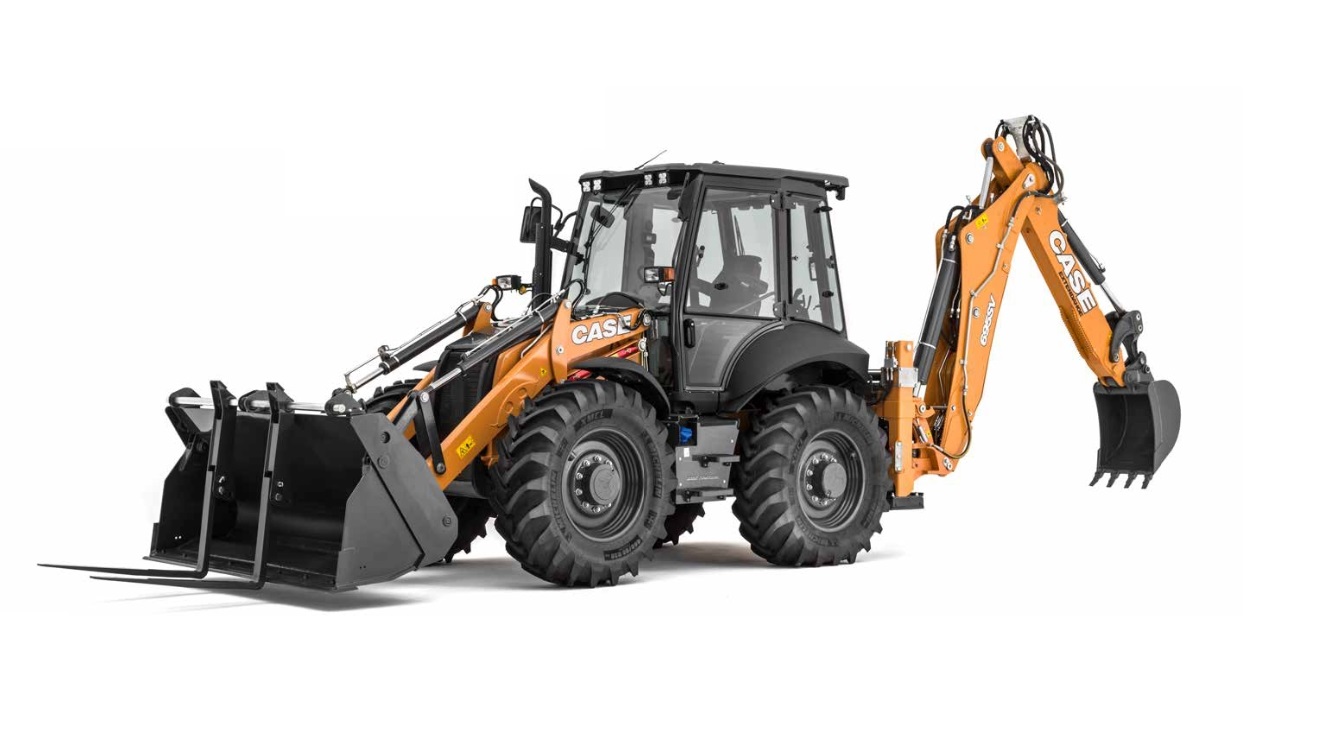

The Case 695SV is a backhoe loader manufactured by Case since 2021. It has a weight of 9.43 tons and a transport length of 5.499 m…

The Case 695SV is a backhoe loader manufactured by Case since 2021. It has a weight of 9.43 tons and a transport length of 5.499 meters. The bucket capacity is 1.2 cubic meters, with a tear-out force of 40.62 kilonewtons. It can dredge up to a depth of 4.595 meters and has a bucket width of 2.4 meters. The maximum discharge height is 2.75 meters, and it has a maximum reach horizontal of 5.185 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.48 meters and a transport height of 2.9 meters. Additionally, it is equipped with air conditioning, a clamshell, and a forklift utility. The backhoe bucket capacity is 0.3 cubic meters, and it has a tear-out force of 61.14 kilonewtons.

695SV

Years of manufacture: 2021—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 695SV Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.43 t

Standard tyres: 16.9x24

Bucket width: 2.4 m

Bucket capacity: 1.2 m³

Bucket capacity backhoe: 0.3 m³

Drive: A

Transport length: 5.499 m

Transport width: 2.48 m

Transport height: 2.9 m

Tear-out force: 40.62 kN

Tear-out force backhoe: 61.14 kN

Max. Reach horizontal: 5.185 m

Dredging depth: 4.595 m

Max. discharge height: 2.75 m

Travel speed: 40 km/h

Model series: SV

Engine manuf.: FPT

Engine type: F5C-F5MGL413A

Engine power: 82 kW

Displacement: 3.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 460 Nm

No. of cylinders: 4

Cylinder bore x stroke: 102x110 mm

Emission level: V

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: Yes
Forklift utility: Yes
Grabber: Yes
Diesel particulate filter: Yes
Aircondition: Yes

Download datasheets (PDF)

Case 695SV FAQ

When was the Case 695SV backhoe loader first manufactured?

The Case 695SV backhoe loader was first produced in 2021.

How much does the Case 695SV backhoe loader weigh?

The Case 695SV backhoe loader weighs 9.43 tons.

What are the transport dimensions of the Case 695SV backhoe loader?

The Case 695SV has a transport length of 5.5 meters, a transport width of 2.48 meters, and a transport height of 2.9 meters.

What is the travel speed of the Case 695SV backhoe loader?

The Case 695SV backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 695SV backhoe loader?

The Case 695SV backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9x24.

What are the excavation performance specifications of the Case 695SV backhoe loader?

The Case 695SV backhoe loader has a dredging depth of 4.595 meters and a maximum horizontal reach of 5.185 meters.

What are the tear-out forces of the Case 695SV backhoe loader?

The Case 695SV has a tear-out force of 40.62 kN and a backhoe tear-out force of 61.14 kN.

What is the material handling capacity of the Case 695SV in terms of maximum discharge height?

The Case 695SV has a maximum discharge height of 2.75 meters.

What are the specifications of the primary work tools on the Case 695SV backhoe loader?

The Case 695SV backhoe loader has a front loader bucket with a capacity of 1.2 cubic meters and a width of 2.4 meters, and a backhoe bucket with a capacity of 0.3 cubic meters.
