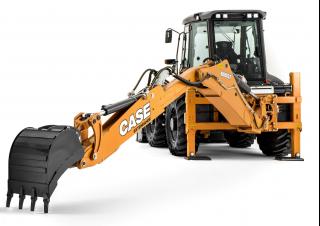

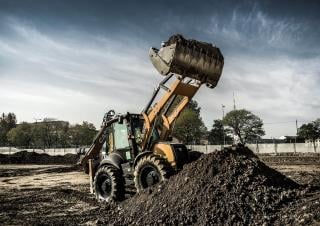

695ST Case 695ST Specifications & Technical Data (2017—2021)

The Case 695ST is a backhoe loader manufactured by Case from 2017 to 2021. It has a weight of 9.43 tons and a transport length of …

The Case 695ST is a backhoe loader manufactured by Case from 2017 to 2021. It has a weight of 9.43 tons and a transport length of 5.499 meters. The bucket capacity is 1.2 cubic meters, with a tear-out force of 40.62 kilonewtons. It can dredge up to a depth of 4.595 meters and has a bucket width of 2.4 meters. The maximum discharge height is 2.75 meters, and it has a maximum reach horizontal of 5.185 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.48 meters and a transport height of 2.9 meters. Additionally, it is equipped with air conditioning, a clamshell, and a forklift utility. The backhoe bucket capacity is 0.3 cubic meters, and it has a tear-out force of 61.14 kilonewtons.

695ST

Years of manufacture: 2017—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 695ST Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.43 t

Standard tyres: 16.9x24

Bucket width: 2.4 m

Bucket capacity: 1.2 m³

Bucket capacity backhoe: 0.3 m³

Drive: A

Transport length: 5.499 m

Transport width: 2.48 m

Transport height: 2.9 m

Tear-out force: 40.62 kN

Tear-out force backhoe: 61.14 kN

Max. Reach horizontal: 5.185 m

Dredging depth: 4.595 m

Max. discharge height: 2.75 m

Travel speed: 40 km/h

Model series: ST

Engine manuf.: FPT

Engine type: F 5 BFL 413 A

Engine power: 82 kW

Displacement: 3.4 l

Revolutions at max torque: 1400 rpm

Emission level: TIER 4f

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, backhoe type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: Yes

Download datasheets (PDF)

Case 695ST FAQ

When was the Case 695ST backhoe loader manufactured?

The Case 695ST backhoe loader was manufactured from 2017 to 2021.

How much does the Case 695ST backhoe loader weigh?

The Case 695ST backhoe loader weighs 9.43 tons.

What are the transport dimensions of the Case 695ST backhoe loader?

The Case 695ST has a transport length of 5.5 meters, a transport width of 2.48 meters, and a transport height of 2.9 meters.

What is the travel speed of the Case 695ST backhoe loader?

The Case 695ST backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 695ST backhoe loader?

The Case 695ST backhoe loader features an all-wheel drive system and comes equipped with standard tyres sized 16.9x24.

What are the dredging depth and maximum horizontal reach of the Case 695ST backhoe loader?

The Case 695ST backhoe loader has a dredging depth of 4.595 meters and a maximum horizontal reach of 5.185 meters.

What are the tear-out forces of the Case 695ST backhoe loader?

The Case 695ST backhoe loader has a tear-out force of 40.62 kN and a backhoe tear-out force of 61.14 kN.

What is the maximum discharge height of the Case 695ST backhoe loader?

The Case 695ST backhoe loader has a maximum discharge height of 2.75 meters.

What are the specifications of the primary work tool on the Case 695ST backhoe loader?

The Case 695ST backhoe loader has a bucket capacity of 1.2 cubic meters, a bucket width of 2.4 meters, and a backhoe bucket capacity of 0.3 cubic meters.
