680 K Case 680 K Specifications & Technical Data (1985—1988)

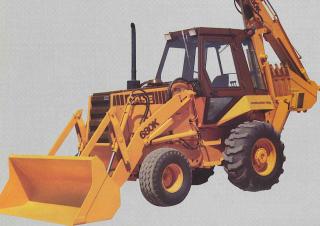

The Case 680 K is a backhoe loader manufactured by Case from 1985 to 1988. It has a weight of 7.772 tons and a transport length of…

The Case 680 K is a backhoe loader manufactured by Case from 1985 to 1988. It has a weight of 7.772 tons and a transport length of 7.01 meters. The bucket capacity is 0.97 cubic meters, with a dredging depth of 5.03 meters. It has a bucket width of 2.18 meters and a transport width of 2.92 meters. The transport height is 3.57 meters.

Backhoe Loaders Case 680 K

Technical specs - 680 K Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.772 t
Standard tyres
16.9x28
Bucket width
2.18 m
Bucket capacity
0.97 m³
Transport length
7.01 m
Transport width
2.92 m
Transport height
3.57 m
Dredging depth
5.03 m
Model series
K
Engine manuf.
Case
Engine type
6590
Engine power
67 kW
Displacement
5.8 l
Max. torque
352 Nm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, max. reach horizontal, max. discharge height, travel speed, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 680 K FAQ

When was the Case 680 K backhoe loader manufactured?

The Case 680 K backhoe loader was manufactured from 1985 to 1988.

How much does the Case 680 K backhoe loader weigh?

The Case 680 K backhoe loader weighs 7.77 tons.

What are the transport dimensions of the Case 680 K backhoe loader?

The Case 680 K backhoe loader has a transport length of 7.01 meters, a transport width of 2.92 meters, and a transport height of 3.57 meters.

What are the standard tyre specifications of the Case 680 K backhoe loader?

The Case 680 K backhoe loader has standard tyres sized 16.9x28.

What is the dredging depth capability of the Case 680 K backhoe loader?

The Case 680 K backhoe loader has a dredging depth of 5.03 meters.

What are the bucket specifications of the Case 680 K backhoe loader?

The Case 680 K backhoe loader has a bucket capacity of 0.97 cubic meters and a bucket width of 2.18 meters.

How much is a Case 680 K Backhoe loader (1985u20131988) worth?

The residual value of the Case 680 K depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
