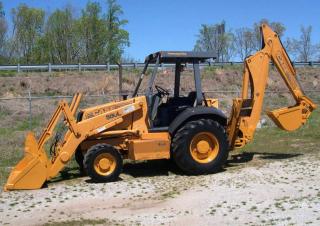

590 Super L Case 590 Super L Specifications & Technical Data (1988—1995)
Technical specs - 590 Super L Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.948 t
- Standard tyres
- 21Lx24 10 PR
- Bucket width
- 2.36 m
- Bucket capacity
- 0.96 m³
- Bucket capacity backhoe
- 0.18 m³
- Transport length
- 7.16 m
- Transport width
- 2.33 m
- Transport height
- 4.75 m
- Max. Reach horizontal
- 7.1 m
- Dredging depth
- 4.72 m
- Travel speed
- 42 km/h
- Model series
- Super
- Engine manuf.
- Case
- Engine type
- 4T 390
- Engine power
- 69 kW
- Displacement
- 3.9 l
- Max. torque
- 351 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x120 mm
More technical details, like: drive, tear-out force, tear-out force backhoe, max. discharge height, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
