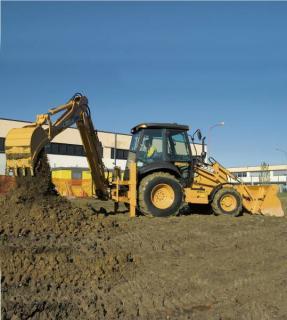

Case 580LE Backhoe Loader Specs & Dimensions (1996 - 2002)

Technical specs - 580LE Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.8 t

Standard tyres: 6.5/80x19

Bucket capacity: 1 m³

Drive: A

Transport length: 5.58 m

Transport width: 2.36 m

Transport height: 3.42 m

Model series: SLE

Engine manuf.: Case

Engine type: 4T 390

Engine power: 70 kW

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

580LE Case Specification for Europe (DE)

Case 580LE FAQ

When was the Case 580LE backhoe loader manufactured?

The Case 580LE backhoe loader was manufactured from 1996 to 2002.

How much does the Case 580LE backhoe loader weigh?

The Case 580LE backhoe loader weighs 7.8 tons.

What are the transport dimensions of the Case 580LE backhoe loader?

The Case 580LE has a transport length of 5.58 meters, a transport width of 2.36 meters, and a transport height of 3.42 meters.

What are the undercarriage specifications of the Case 580LE backhoe loader?

The Case 580LE backhoe loader features an all-wheel drive system and standard tyres sized 6.5/80x19.

What is the bucket capacity of the Case 580LE backhoe loader?

The Case 580LE backhoe loader has a bucket capacity of 1 cubic meter.

How much is a Case 580LE Backhoe loader (1996u20132002) worth?

The residual value of the Case 580LE depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
