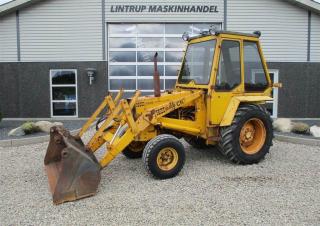

580B Case 580B Specifications & Technical Data (1973—1975)

The Case 580B is a backhoe loader manufactured by Case from 1973 to 1975. It has a weight of 10.2 tons and a bucket width of 2.12 …

The Case 580B is a backhoe loader manufactured by Case from 1973 to 1975. It has a weight of 10.2 tons and a bucket width of 2.12 meters. The backhoe has a bucket capacity of 0.46 cubic meters. Additionally, it is equipped with outrigger stabilizers.

Backhoe Loaders Case 580B

Technical specs - 580B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.2 t
Standard tyres
14.9x24
Bucket width
2.12 m
Bucket capacity backhoe
0.46 m³
Model series
B
Engine manuf.
Case
Engine type
G188D
Engine power
76 kW
Displacement
3.081 l
No. of cylinders
4
Cylinder bore x stroke
97x105 mm

More technical details, like: bucket capacity, drive, transport length, transport width, transport height, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh...

More technical details, like: bucket capacity, drive, transport length, transport width, transport height, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 580B FAQ

When was the Case 580B manufactured?

The Case 580B was manufactured from 1973 to 1975.

How much does the Case 580B backhoe loader weigh?

The Case 580B backhoe loader weighs 10.2 tons.

What is the standard tyre size of the Case 580B backhoe loader?

The Case 580B backhoe loader has standard tyres sized 14.9x24.

What are the specifications of the primary work tool on the Case 580B backhoe loader?

The primary work tool of the Case 580B backhoe loader has a bucket width of 2.12 meters and a backhoe bucket capacity of 0.46 cubic meters.

How much is a Case 580B Backhoe loader (1973u20131975) worth?

The residual value of the Case 580B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
