580 Super R Case 580 Super R Specifications & Technical Data (2004—2026)

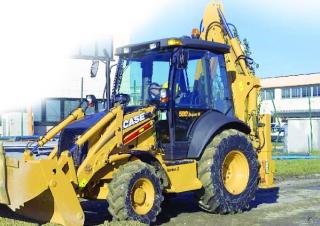

The Case 580 Super R is a backhoe loader manufactured by Case since 2004. It has a weight of 8.14 tons and a transport length of 5…

The Case 580 Super R is a backhoe loader manufactured by Case since 2004. It has a weight of 8.14 tons and a transport length of 5.77 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 35.65 kilonewtons. It can dredge up to a depth of 5.799 meters and has a bucket width of 2.25 meters. The maximum discharge height is 4.645 meters, and it can reach a maximum horizontal distance of 6.992 meters. The travel speed of this machine is 40 kilometers per hour. It has a transport width of 2.23 meters and a transport height of 3.9 meters. The tear-out force of the backhoe is 56.03 kilonewtons. Additionally, it is equipped with special features such as forklift utility and outrigger stabilizers.

Backhoe Loaders Case 580 Super R

Technical specs - 580 Super R Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.14 t
Standard tyres
16.9x28
Bucket width
2.25 m
Bucket capacity
1 m³
Transport length
5.77 m
Transport width
2.23 m
Transport height
3.9 m
Tear-out force
35.65 kN
Tear-out force backhoe
56.03 kN
Max. Reach horizontal
6.992 m
Dredging depth
5.799 m
Max. discharge height
4.645 m
Travel speed
40 km/h
Model series
Super
Engine manuf.
Case
Engine type
NEF Family III 445T-M2
Engine power
71 kW
Displacement
4.5 l
Max. torque
400 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
Tier 2

More technical details, like: bucket capacity backhoe, drive, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 580 Super R FAQ

When was the Case 580 Super R manufactured?

The Case 580 Super R was first produced in 2004.

How much does the Case 580 Super R weigh?

The Case 580 Super R weighs 8.14 tons.

What are the transport dimensions of the Case 580 Super R backhoe loader?

The transport dimensions of the Case 580 Super R are 5.77 meters in length, 2.23 meters in width, and 3.9 meters in height.

What is the travel speed of the Case 580 Super R backhoe loader?

The Case 580 Super R backhoe loader has a travel speed of 40 km/h.

What is the size of the standard tyres on the Case 580 Super R backhoe loader?

The Case 580 Super R backhoe loader has standard tyres sized 16.9x28.

What are the excavation specifications of the Case 580 Super R backhoe loader?

The Case 580 Super R backhoe loader has a dredging depth of 5.799 meters and a maximum horizontal reach of 6.992 meters.

What are the tear-out forces of the Case 580 Super R backhoe loader?

The Case 580 Super R has a tear-out force of 35.65 kN and a backhoe tear-out force of 56.03 kN.

What is the material handling capacity of the Case 580 Super R in terms of discharge height?

The Case 580 Super R has a maximum discharge height of 4.65 meters.

What are the bucket specifications of the Case 580 Super R backhoe loader?

The Case 580 Super R backhoe loader has a bucket capacity of 1 cubic meter and a bucket width of 2.25 meters.
