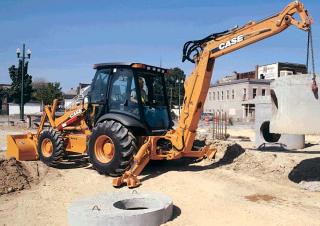

Case 580 Super M+ Backhoe Loader Specs & Dimensions (2004 - 2026)

Technical specs - 580 Super M+ Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.165 t

Model series: Super

Engine manuf.: Case

Engine type: Family III 445T/M2

Engine power: 71 kW

Displacement: 4.5 l

Max. torque: 398 Nm

No. of cylinders: 4

Cylinder bore x stroke: 104x132 mm

Emission level: Tier II

More technical details, like: standard tyres, bucket width, bucket capacity, bucket capacity backhoe, drive, transport length, transport width, transport height, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth...

More technical details, like: standard tyres, bucket width, bucket capacity, bucket capacity backhoe, drive, transport length, transport width, transport height, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

580 Super M+ Case Specification for North America (EN)

Case 580 Super M+ FAQ

When was the Case 580 Super M+ manufactured?

The Case 580 Super M+ was first produced in 2004.

How much does the Case 580 Super M+ weigh?

The Case 580 Super M+ weighs 8.17 tons.

How much is a Case 580 Super M+ Backhoe loader (2004u20132025) worth?

The residual value of the Case 580 Super M+ depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
