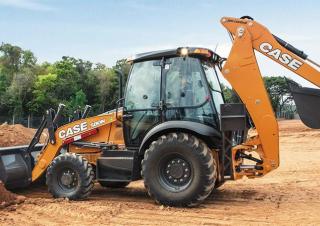

580 N Case 580 N Specifications & Technical Data (2011—2026)

The Case 580 N is a backhoe loader manufactured by Case since 2011. It has a weight of 7.917 tons and a transport length of 7.14 m…

The Case 580 N is a backhoe loader manufactured by Case since 2011. It has a weight of 7.917 tons and a transport length of 7.14 meters. The bucket capacity is 0.67 cubic meters, with a tear-out force of 40.76 kilonewtons. The dredging depth is 5.56 meters, and the bucket width is 2.08 meters. It has a maximum discharge height of 4.04 meters and a maximum reach horizontal of 7.75 meters. The travel speed is 47.8 kilometers per hour. The transport width is 2.01 meters and the transport height is 2.66 meters. Additionally, it has a backhoe bucket capacity of 0.13 cubic meters and a tear-out force of 49.873 kilonewtons.

580 N

Years of manufacture: 2011—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 580 N Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.917 t

Standard tyres: 19.5Lx24

Bucket width: 2.08 m

Bucket capacity: 0.67 m³

Bucket capacity backhoe: 0.13 m³

Transport length: 7.14 m

Transport width: 2.01 m

Transport height: 2.66 m

Tear-out force: 40.76 kN

Tear-out force backhoe: 49.873 kN

Max. Reach horizontal: 7.75 m

Dredging depth: 5.56 m

Max. discharge height: 4.04 m

Travel speed: 47.8 km/h

Model series: N

Engine manuf.: Case

Engine type: F5C

Engine power: 63 kW

Displacement: 3.4 l

Max. torque: 374 Nm

No. of cylinders: 4

Cylinder bore x stroke: 99x110 mm

More technical details, like: drive, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Case 580 N FAQ

When was the Case 580 N manufactured?

The Case 580 N was first produced in 2011.

How much does the Case 580 N backhoe loader weigh?

The Case 580 N backhoe loader weighs 7.92 tons.

What are the transport dimensions of the Case 580 N backhoe loader?

The Case 580 N has a transport length of 7.14 meters, a transport width of 2.01 meters, and a transport height of 2.66 meters.

What is the travel speed of the Case 580 N backhoe loader?

The Case 580 N backhoe loader has a travel speed of 47.8 km/h.

What are the undercarriage specifications of the Case 580 N backhoe loader?

The Case 580 N backhoe loader comes equipped with standard tyres sized 19.5Lx24.

What is the excavation performance of the Case 580 N backhoe loader?

The Case 580 N backhoe loader has a dredging depth of 5.56 meters and a maximum horizontal reach of 7.75 meters.

What are the tear-out force specifications of the Case 580 N backhoe loader?

The Case 580 N has a tear-out force of 40.76 kN and a backhoe tear-out force of 49.87 kN.

What is the material handling capacity of the Case 580 N in terms of maximum discharge height?

The Case 580 N has a maximum discharge height of 4.04 meters.

What are the primary work tool specifications of the Case 580 N backhoe loader?

The Case 580 N has a loader bucket capacity of 0.67 cubic meters with a width of 2.08 meters, and a backhoe bucket capacity of 0.13 cubic meters.
