580 M Turbo Case 580 M Turbo Specifications & Technical Data (2001—2005)

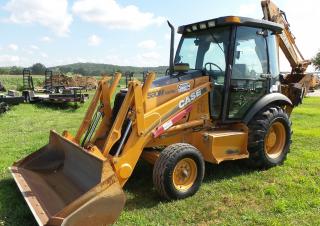

The Case 580 M Turbo is a backhoe loader manufactured by Case from 2001 to 2005. It has a weight of 7.489 tons and a transport len…

The Case 580 M Turbo is a backhoe loader manufactured by Case from 2001 to 2005. It has a weight of 7.489 tons and a transport length of 7.07 meters. The bucket capacity is 0.79 cubic meters, with a tear-out force of 40.76 kilonewtons. The dredging depth is 5.56 meters, and the bucket width is 2.08 meters. The maximum discharge height is 4.04 meters, and the maximum reach horizontal is 7.75 meters. It has a travel speed of 47.8 kilometers per hour. The transport width is 2.67 meters, and the transport height is 2.72 meters. The backhoe has a bucket capacity of 0.13 cubic meters and a tear-out force of 49.873 kilonewtons. It also comes with special equipment including forklift utility and outrigger stabilizers.

Backhoe Loaders Case 580 M Turbo

Technical specs - 580 M Turbo Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.489 t
Standard tyres
19.5Lx24 10-ply
Bucket width
2.08 m
Bucket capacity
0.79 m³
Bucket capacity backhoe
0.13 m³
Transport length
7.07 m
Transport width
2.67 m
Transport height
2.72 m
Tear-out force
40.76 kN
Tear-out force backhoe
49.873 kN
Max. Reach horizontal
7.75 m
Dredging depth
5.56 m
Max. discharge height
4.04 m
Travel speed
47.8 km/h
Model series
M
Engine manuf.
Case
Engine type
Family III 445T/M2
Engine power
63 kW
Displacement
4.5 l
Max. torque
340 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
Tier II

More technical details, like: drive, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 580 M Turbo FAQ

When was the Case 580 M Turbo manufactured?

The Case 580 M Turbo was manufactured from 2001 to 2005.

How much does the Case 580 M Turbo backhoe loader weigh?

The Case 580 M Turbo backhoe loader weighs 7.49 tons.

What are the transport dimensions of the Case 580 M Turbo backhoe loader?

The Case 580 M Turbo has a transport length of 7.07 meters, a transport width of 2.67 meters, and a transport height of 2.72 meters.

What is the travel speed of the Case 580 M Turbo backhoe loader?

The Case 580 M Turbo backhoe loader has a travel speed of 47.8 km/h.

What are the undercarriage specifications of the Case 580 M Turbo backhoe loader?

The Case 580 M Turbo is equipped with standard tyres sized 19.5Lx24 10-ply.

What are the excavation performance specifications of the Case 580 M Turbo backhoe loader?

The Case 580 M Turbo backhoe loader has a dredging depth of 5.56 meters and a maximum horizontal reach of 7.75 meters.

What are the tear-out force values of the Case 580 M Turbo backhoe loader?

The Case 580 M Turbo has a tear-out force of 40.76 kN and a backhoe tear-out force of 49.87 kN.

What is the material handling capacity of the Case 580 M Turbo in terms of maximum discharge height?

The Case 580 M Turbo has a maximum discharge height of 4.04 meters.

What are the specifications of the primary work tool on the Case 580 M Turbo backhoe loader?

The Case 580 M Turbo has a bucket capacity of 0.79 cubic meters, a bucket width of 2.08 meters, and a backhoe bucket capacity of 0.13 cubic meters.

How much is a Case 580 M Turbo Backhoe loader (2001u20132005) worth?

The residual value of the Case 580 M Turbo depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
