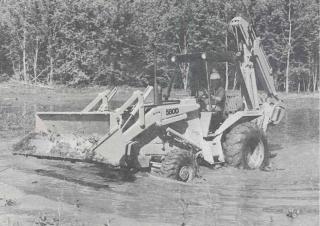

580 D Super D Case 580 D Super D Specifications & Technical Data (1981—2020)
Technical specs - 580 D Super D Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.749 t
- Standard tyres
- 17.5Lx24 R4
- Bucket width
- 2.24 m
- Bucket capacity
- 0.76 m³
- Bucket capacity backhoe
- 0.08 m³
- Transport length
- 6.8 m
- Transport width
- 2.13 m
- Transport height
- 2.63 m
- Tear-out force
- 33.806 kN
- Tear-out force backhoe
- 46.92 kN
- Max. Reach horizontal
- 7.62 m
- Dredging depth
- 5.56 m
- Max. discharge height
- 4.35 m
- Travel speed
- 33.8 km/h
- Model series
- D
- Engine manuf.
- Case
- Engine type
- G207D
- Engine power
- 44.7 kW
- Displacement
- 3.392 l
- Max. torque
- 217 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x105 mm
More technical details, like: drive, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
Yes
- Clamshell
-
No
- Forklift utility
-
Yes
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
