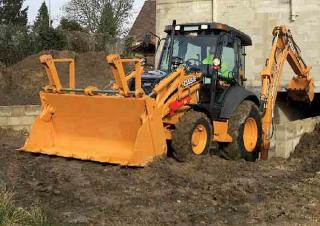

580 Case 580 Specifications & Technical Data (2009—2012)

The Case 580 is a backhoe loader manufactured by Case from 2009 to 2012. It has a weight of 7.91 tons and a transport length of 5.…

The Case 580 is a backhoe loader manufactured by Case from 2009 to 2012. It has a weight of 7.91 tons and a transport length of 5.77 meters. The bucket capacity is 1 cubic meter, with a bucket width of 2.25 meters. The maximum discharge height is 2.693 meters, and it has a maximum reach horizontal of 3.458 meters. The transport width is 2.43 meters, and the transport height is 3.9 meters. Additionally, it is equipped with air conditioning as its special equipment.

580

Years of manufacture: 2009—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 580 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.91 t

Standard tyres: 16.9-28

Bucket width: 2.25 m

Bucket capacity: 1 m³

Drive: A

Transport length: 5.77 m

Transport width: 2.43 m

Transport height: 3.9 m

Max. Reach horizontal: 3.458 m

Max. discharge height: 2.693 m

Engine manuf.: CNH

Engine type: F4GE9484C*J

Engine power: 72 kW

Displacement: 4.5 l

Revolutions at max torque: 1400 rpm

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, dredging depth, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: Yes

Download datasheets (PDF)

Case 580 FAQ

When was the Case 580 backhoe loader manufactured?

The Case 580 was manufactured from 2009 to 2012.

How much does the Case 580 backhoe loader weigh?

The Case 580 backhoe loader weighs 7.91 tons.

What are the transport dimensions of the Case 580 backhoe loader?

The Case 580 backhoe loader has a transport length of 5.77 meters, a transport width of 2.43 meters, and a transport height of 3.9 meters.

What are the undercarriage specifications of the Case 580 backhoe loader?

The Case 580 backhoe loader has an all-wheel drive system and uses standard tyres sized 16.9-28.

What is the maximum horizontal reach of the Case 580 backhoe loader during excavation?

The Case 580 backhoe loader has a maximum horizontal reach of 3.458 meters during excavation.

What is the maximum discharge height of the Case 580?

The Case 580 has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tool bucket on the Case 580 backhoe loader?

The primary work tool bucket of the Case 580 backhoe loader has a capacity of 1 cubic meter and a width of 2.25 meters.
