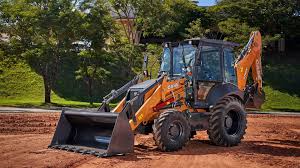

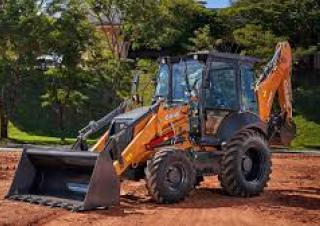

575SV Case 575SV Specifications & Technical Data (2023—2026)

Weight: 7.861t – Standard tyres: F: 12.5x18/ R: 16.9x28 – Bucket width: 2.3m – Bucket capacity: 1.2m³ – Bucket capacity backhoe: 0.3m³ – Transport length: 7.19m

575SV

Years of manufacture: 2023—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 575SV Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.861 t

Standard tyres: F: 12.5x18/ R: 16.9x28

Bucket width: 2.3 m

Bucket capacity: 1.2 m³

Bucket capacity backhoe: 0.3 m³

Transport length: 7.19 m

Transport width: 2.3 m

Transport height: 3.79 m

Dredging depth: 10 m

Max. discharge height: 3.42 m

Travel speed: 39.2 km/h

Model series: SV

Engine manuf.: FPT

Engine type: S8000

Engine power: 72 kW

Displacement: 3.9 l

Revolutions at max torque: 2200 rpm

Max. torque: 420 Nm

No. of cylinders: 4

Cylinder bore x stroke: 104x115 mm

Emission level: Tier 3

More technical details, like: drive, tear-out force, tear-out force backhoe, max. reach horizontal, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: Yes
Aircondition: No

Download datasheets (PDF)

Case 575SV FAQ

When was the Case 575SV manufactured?

The Case 575SV was first produced in 2023.

How much does the Case 575SV backhoe loader weigh?

The Case 575SV backhoe loader weighs 7.86 tons.

What are the transport dimensions of the Case 575SV backhoe loader?

The Case 575SV has a transport length of 7.19 meters, a transport width of 2.3 meters, and a transport height of 3.79 meters.

What is the travel speed of the Case 575SV backhoe loader?

The Case 575SV backhoe loader has a travel speed of 39.2 km/h.

What are the undercarriage specifications of the Case 575SV backhoe loader?

The Case 575SV backhoe loader has standard tyres sized 12.5x18 at the front and 16.9x28 at the rear.

What is the excavation dredging depth of the Case 575SV backhoe loader?

The Case 575SV backhoe loader has a dredging depth of 10 meters.

What is the maximum discharge height for material handling on the Case 575SV backhoe loader?

The Case 575SV backhoe loader has a maximum discharge height of 3.42 meters for material handling.

What are the specifications of the primary work tools on the Case 575SV backhoe loader?

The Case 575SV features a front loader bucket with a capacity of 1.2 cubic meters and a width of 2.3 meters, along with a backhoe bucket capacity of 0.3 cubic meters.
