570TS Case 570TS Specifications & Technical Data (2021—2026)

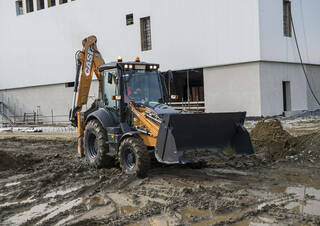

The Case 570TS is a backhoe loader manufactured by Case since 2021. It has a weight of 7.35 tons and a bucket capacity of 1.2 cubi…

The Case 570TS is a backhoe loader manufactured by Case since 2021. It has a weight of 7.35 tons and a bucket capacity of 1.2 cubic meters. It can dredge up to a depth of 4.7 meters and has a bucket width of 2.27 meters. The maximum discharge height is 3.3 meters, and it has a maximum reach horizontal of 5.93 meters. The travel speed of this backhoe loader is 39.2 kilometers per hour. It has a transport width of 2.28 meters and a transport height of 3.8 meters. The backhoe bucket capacity is 0.3 cubic meters, and it has a tear-out force of 55 kilonewtons.

570TS

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 570TS Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.35 t

Standard tyres: 16.9x28 - 12PR

Bucket width: 2.27 m

Bucket capacity: 1.2 m³

Bucket capacity backhoe: 0.3 m³

Transport width: 2.28 m

Transport height: 3.8 m

Tear-out force backhoe: 55 kN

Max. Reach horizontal: 5.93 m

Dredging depth: 4.7 m

Max. discharge height: 3.3 m

Travel speed: 39.2 km/h

Model series: TS

Engine manuf.: FPT

Engine type: 8045.45.748

Engine power: 72 kW

Displacement: 3.9 l

Revolutions at max torque: 1300 rpm

Max. torque: 420 Nm

Cylinder bore x stroke: 104x115 mm

More technical details, like: drive, transport length, tear-out force, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

570TS Case Specification for Global (EN)

Case 570TS FAQ

When was the Case 570TS backhoe loader first manufactured?

The Case 570TS backhoe loader was first produced in 2021.

How much does the Case 570TS backhoe loader weigh?

The Case 570TS backhoe loader weighs 7.35 tons.

What are the transport dimensions of the Case 570TS backhoe loader?

The Case 570TS has a transport width of 2.28 meters and a transport height of 3.8 meters.

What is the travel speed of the Case 570TS backhoe loader?

The Case 570TS backhoe loader has a travel speed of 39.2 km/h.

What are the standard undercarriage tyre specifications of the Case 570TS backhoe loader?

The Case 570TS backhoe loader has standard tyres sized 16.9x28 - 12PR.

What are the excavation specifications of the Case 570TS backhoe loader?

The Case 570TS backhoe loader has a dredging depth of 4.7 meters and a maximum horizontal reach of 5.93 meters.

What is the tear-out force of the Case 570TS backhoe loader?

The Case 570TS backhoe loader has a tear-out force of 55 kN.

What is the maximum discharge height of the Case 570TS?

The Case 570TS has a maximum discharge height of 3.3 meters.

What are the specifications of the primary work bucket on the Case 570TS backhoe loader?

The primary work bucket of the Case 570TS backhoe loader has a capacity of 1.2 cubic meters and a width of 2.27 meters.
