570T Case 570T Specifications & Technical Data (2021—2026)

The Case 570T is a backhoe loader manufactured by Case since 2021. It has a weight of 7.35 tons and a bucket capacity of 1.2 cubic…

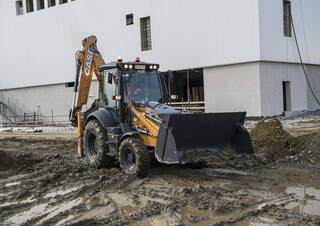

The Case 570T is a backhoe loader manufactured by Case since 2021. It has a weight of 7.35 tons and a bucket capacity of 1.2 cubic meters. The machine can dredge up to a depth of 4.4 meters and has a bucket width of 2.27 meters. The maximum discharge height is 3.3 meters, and it has a maximum reach horizontal of 5.66 meters. The travel speed of this backhoe loader is 39.2 kilometers per hour. It has a transport width of 2.28 meters and a transport height of 3.8 meters. The backhoe bucket capacity is 0.3 cubic meters, and it has a tear-out force of 55 kilonewtons.

570T

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 570T Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.35 t

Standard tyres: 12.5x18 - 12PR

Bucket width: 2.27 m

Bucket capacity: 1.2 m³

Bucket capacity backhoe: 0.3 m³

Transport width: 2.28 m

Transport height: 3.8 m

Tear-out force backhoe: 55 kN

Max. Reach horizontal: 5.66 m

Dredging depth: 4.4 m

Max. discharge height: 3.3 m

Travel speed: 39.2 km/h

Model series: T

Engine manuf.: FPT

Engine type: 8045.45.745

Engine power: 64 kW

Displacement: 3.9 l

Revolutions at max torque: 1300 rpm

Max. torque: 393 Nm

Cylinder bore x stroke: 104x115 mm

More technical details, like: drive, transport length, tear-out force, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

570T Case Specification for Global (EN)

Case 570T FAQ

When was the Case 570T backhoe loader first manufactured?

The Case 570T backhoe loader was first produced in 2021.

How much does the Case 570T backhoe loader weigh?

The Case 570T backhoe loader weighs 7.35 tons.

What are the transport dimensions of the Case 570T backhoe loader?

The Case 570T has a transport width of 2.28 meters and a transport height of 3.8 meters.

What is the travel speed of the Case 570T backhoe loader?

The Case 570T backhoe loader has a travel speed of 39.2 km/h.

What is the standard tyre specification of the Case 570T backhoe loader?

The Case 570T backhoe loader has standard tyres sized 12.5x18 - 12PR.

What is the excavation performance of the Case 570T backhoe loader?

The Case 570T backhoe loader has a dredging depth of 4.4 meters and a maximum horizontal reach of 5.66 meters.

What is the tear-out force of the Case 570T backhoe loader?

The Case 570T backhoe loader has a tear-out force of 55 kN.

What is the maximum discharge height of the Case 570T?

The Case 570T has a maximum discharge height of 3.3 meters.

What are the specifications of the primary work tools on the Case 570T backhoe loader?

The Case 570T features a front loader bucket with a capacity of 1.2 cubic meters and a width of 2.27 meters, and a backhoe bucket with a capacity of 0.3 cubic meters.
