HD96 4WD Bull HD96 4WD Specifications & Technical Data (2018—2026)

The Bull HD96 4WD is a backhoe loader manufactured by Bull since 2018. It has a weight of 8.15 tons and a transport length of 6.04…

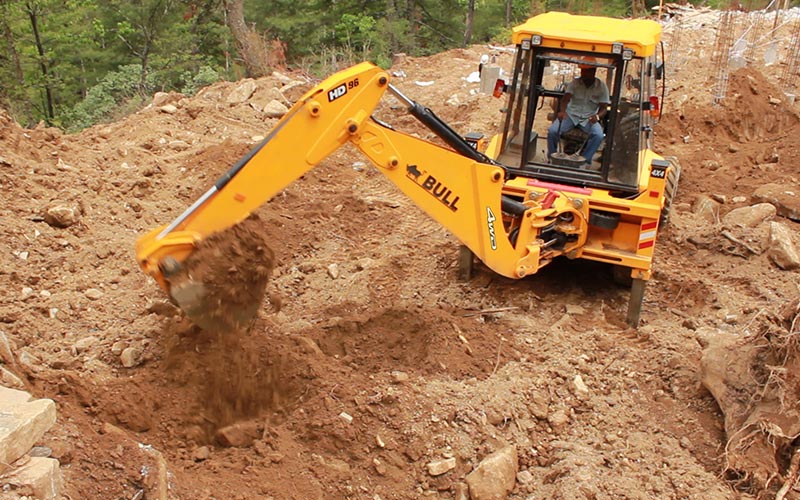

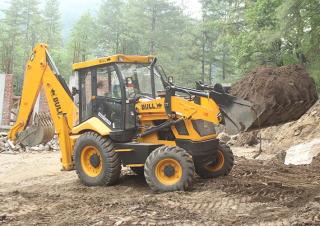

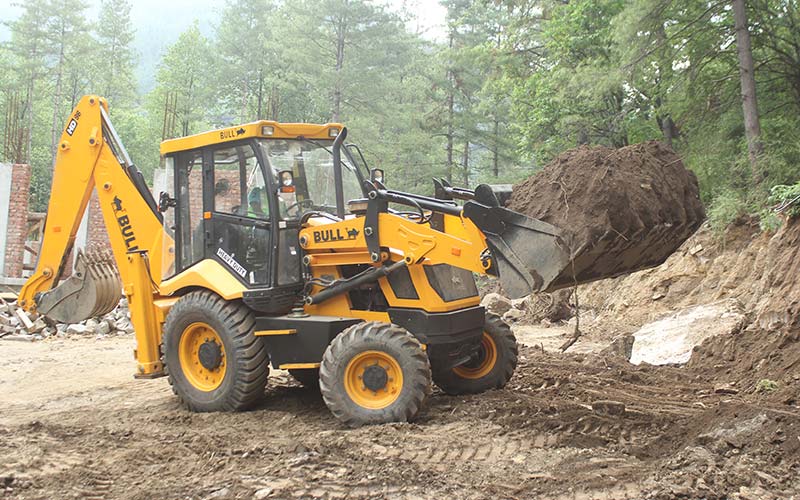

The Bull HD96 4WD is a backhoe loader manufactured by Bull since 2018. It has a weight of 8.15 tons and a transport length of 6.04 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 80.25 kilonewtons. It can dredge up to a depth of 4.6 meters and has a bucket width of 2.35 meters. The maximum discharge height is 2.96 meters, and it has a maximum reach horizontal of 5.5 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.71 meters. The backhoe bucket capacity is 0.27 cubic meters, and it has a tear-out force of 59.55 kilonewtons.

HD96 4WD

Years of manufacture: 2018—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - HD96 4WD Bull

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.15 t

Standard tyres: Front: 12.5/80X18 -12PR. Rear: 16.9X28 -12PR

Bucket width: 2.35 m

Bucket capacity: 1.1 m³

Bucket capacity backhoe: 0.27 m³

Transport length: 6.04 m

Transport width: 2.35 m

Transport height: 3.71 m

Tear-out force: 80.25 kN

Tear-out force backhoe: 59.55 kN

Max. Reach horizontal: 5.5 m

Dredging depth: 4.6 m

Max. discharge height: 2.96 m

Travel speed: 40 km/h

Model series: HD

More technical details, like: drive, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

HD96 4WD Bull Specification for Europe (EN)

Bull HD96 4WD FAQ

When was the Bull HD96 4WD manufactured?

The Bull HD96 4WD was first produced in 2018.

How much does the Bull HD96 4WD backhoe loader weigh?

The Bull HD96 4WD backhoe loader weighs 8.15 tons.

What are the transport dimensions of the Bull HD96 4WD backhoe loader?

The Bull HD96 4WD has a transport length of 6.04 meters, a transport width of 2.35 meters, and a transport height of 3.71 meters.

What is the travel speed of the Bull HD96 4WD backhoe loader?

The Bull HD96 4WD backhoe loader has a travel speed of 40 km/h.

What are the undercarriage tyre specifications of the Bull HD96 4WD backhoe loader?

The Bull HD96 4WD is equipped with standard tyres sized Front: 12.5/80X18 -12PR and Rear: 16.9X28 -12PR.

What is the excavation performance of the Bull HD96 4WD backhoe loader?

The Bull HD96 4WD has a dredging depth of 4.6 meters and a maximum horizontal reach of 5.5 meters.

What are the tear-out forces of the Bull HD96 4WD backhoe loader?

The Bull HD96 4WD has a tear-out force of 80.25 kN and a backhoe tear-out force of 59.55 kN.

What is the material handling capacity of the Bull HD96 4WD in terms of maximum discharge height?

The Bull HD96 4WD has a maximum discharge height of 2.96 meters.

What are the specifications of the primary work tools on the Bull HD96 4WD backhoe loader?

The Bull HD96 4WD features a loader bucket with a capacity of 1.1 cubic meters and a width of 2.35 meters, and a backhoe bucket with a capacity of 0.27 cubic meters.

How much is a Bull HD96 4WD Backhoe loader (2018u20132025) worth?

The residual value of the Bull HD96 4WD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
