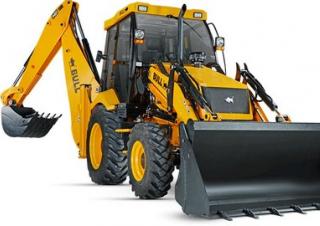

HD100 4WD Bull HD100 4WD Specifications & Technical Data (2018—2026)

The Bull HD100 4WD is a backhoe loader manufactured by Bull since 2018. It has a weight of 8.2 tons and a bucket capacity of 1.2 c…

The Bull HD100 4WD is a backhoe loader manufactured by Bull since 2018. It has a weight of 8.2 tons and a bucket capacity of 1.2 cubic meters. The tear-out force is 86.23 kilonewtons, and it can dredge up to a depth of 4.6 meters. The maximum discharge height is 2.96 meters, and it has a maximum reach horizontal of 5.5 meters. The travel speed of this backhoe loader is 40 kilometers per hour. The backhoe bucket capacity is 0.27 cubic meters, with a tear-out force of 62.68 kilonewtons.

HD100 4WD

Years of manufacture: 2018—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - HD100 4WD Bull

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.2 t

Standard tyres: Front: 12.5/80X18 -12PR. Rear: 16.9X28 -12PR

Bucket capacity: 1.2 m³

Bucket capacity backhoe: 0.27 m³

Tear-out force: 86.23 kN

Tear-out force backhoe: 62.68 kN

Max. Reach horizontal: 5.5 m

Dredging depth: 4.6 m

Max. discharge height: 2.96 m

Travel speed: 40 km/h

Model series: HD

More technical details, like: bucket width, drive, transport length, transport width, transport height, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

HD100 4WD Bull Specification for Europe (EN)

Bull HD100 4WD FAQ

When was the Bull HD100 4WD backhoe loader first manufactured?

The Bull HD100 4WD backhoe loader was first produced in 2018.

How much does the Bull HD100 4WD backhoe loader weigh?

The Bull HD100 4WD backhoe loader weighs 8.2 tons.

What is the travel speed of the Bull HD100 4WD backhoe loader?

The Bull HD100 4WD backhoe loader has a travel speed of 40 km/h.

What are the standard tyre specifications for the Bull HD100 4WD backhoe loader?

The Bull HD100 4WD comes with standard tyres sized Front: 12.5/80X18 -12PR and Rear: 16.9X28 -12PR.

What are the excavation performance specifications of the Bull HD100 4WD backhoe loader?

The Bull HD100 4WD has a dredging depth of 4.6 meters and a maximum horizontal reach of 5.5 meters.

What are the tear-out forces of the Bull HD100 4WD backhoe loader?

The Bull HD100 4WD has a tear-out force of 86.23 kN and a tear-out force for the backhoe of 62.68 kN.

What is the maximum discharge height of the Bull HD100 4WD?

The Bull HD100 4WD has a maximum discharge height of 2.96 meters.

What are the bucket capacities of the Bull HD100 4WD backhoe loader?

The Bull HD100 4WD has a front bucket capacity of 1.2 cubic meters and a backhoe bucket capacity of 0.27 cubic meters.
