B900 Bobcat B900 Specifications & Technical Data (2022—2026)

The Bobcat B900 is a backhoe loader manufactured by Bobcat since 2022. It has a weight of 7.99 tons and a transport length of 6.14…

The Bobcat B900 is a backhoe loader manufactured by Bobcat since 2022. It has a weight of 7.99 tons and a transport length of 6.144 meters. The bucket capacity is 1.1 cubic meters, with a dredging depth of 4.966 meters. It has a bucket width of 2.35 meters and a maximum discharge height of 4.418 meters. The maximum reach horizontal is 5.807 meters, and the travel speed is 40 kilometers per hour. It has a transport width of 2.286 meters and a transport height of 3.76 meters. The backhoe bucket capacity is 0.27 cubic meters.

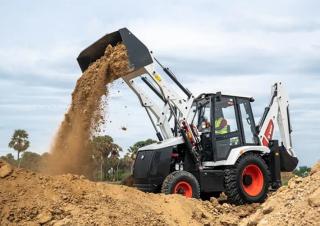

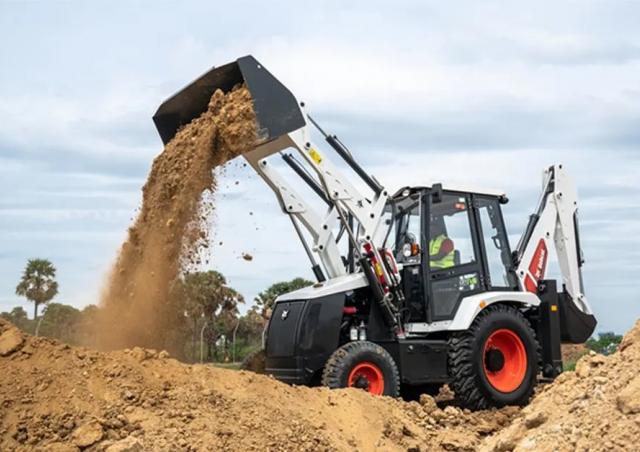

Backhoe Loaders Bobcat B900
Backhoe Loaders Bobcat B900
Backhoe Loaders Bobcat B900
Backhoe Loaders Bobcat B900

Visit Bobcat live at

Technical specs - B900 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.99 t
Standard tyres
Front: 9 x 16 / Rear: 16.9 x 28
Bucket width
2.35 m
Bucket capacity
1.1 m³
Bucket capacity backhoe
0.27 m³
Transport length
6.144 m
Transport width
2.286 m
Transport height
3.76 m
Max. Reach horizontal
5.807 m
Dredging depth
4.966 m
Max. discharge height
4.418 m
Travel speed
40 km/h
Model series
B
Engine manuf.
Ashok Leyland
Engine type
H4C47422
Engine power
74 HP
Displacement
3.893 l
Revolutions at max torque
1400 rpm
Max. torque
336 Nm
No. of cylinders
4
Emission level
CEV Stage - IV

More technical details, like: drive, tear-out force, tear-out force backhoe, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Bobcat B900 FAQ

When was the Bobcat B900 manufactured?

The Bobcat B900 was first produced in 2022.

How much does the Bobcat B900 weigh?

The Bobcat B900 weighs 7.99 tons.

What are the transport dimensions of the Bobcat B900 backhoe loader?

The Bobcat B900 has a transport length of 6.14 meters, a transport width of 2.29 meters, and a transport height of 3.76 meters.

What is the travel speed of the Bobcat B900 backhoe loader?

The Bobcat B900 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Bobcat B900?

The Bobcat B900 has standard tyres sized Front: 9 x 16 and Rear: 16.9 x 28.

What are the dredging depth and maximum horizontal reach of the Bobcat B900 backhoe loader?

The Bobcat B900 has a dredging depth of 4.966 meters and a maximum horizontal reach of 5.807 meters.

What is the material handling capacity of the Bobcat B900 in terms of maximum discharge height?

The Bobcat B900 has a maximum discharge height of 4.42 meters.

What are the specifications of the primary work tool on the Bobcat B900 backhoe loader?

The Bobcat B900 has a bucket capacity of 1.1 cubic meters, a bucket width of 2.35 meters, and a backhoe bucket capacity of 0.27 cubic meters.

How much is a Bobcat B900 Backhoe loader (2022u20132025) worth?

The residual value of the Bobcat B900 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
