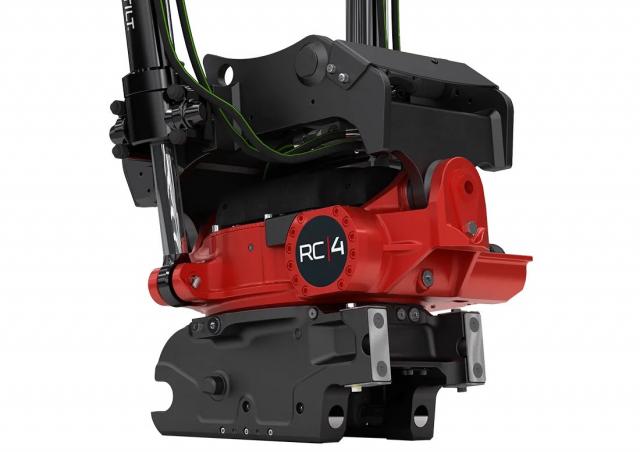

Rototilt® RC4 Specifications & Technical Data (2023-2025)

Max excavator weight: 16t – Max bucket capacity: 0.8m³ – Max bucket width: 1600mm – Max breakout force: 125kN – Max breakout torque: 163kNm – Weight: 315kg

Technical specs - RC4 Rototilt®

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Max excavator weight
16 t
Max bucket capacity
0.8 m³
Max bucket width
1600 mm
Max breakout force
125 kN
Max breakout torque
163 kNm
Weight
315 kg
Tilt angle
40 °
Rotation speed
7 s
Working pressure
25 MPa
Max return pressure
2 MPa
Max. oil flow
80 l/min
Nr. of lubrication points
8
Turn torque
8200 Nm
Pressure at max turn torque
25 MPa
Model series
RC
