S3070 Caterpillar S3070 Specifications & Technical Data (2017—2023)

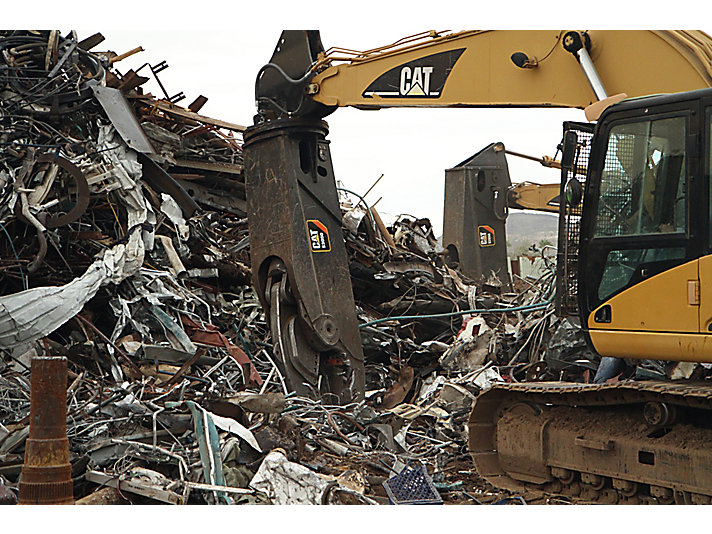

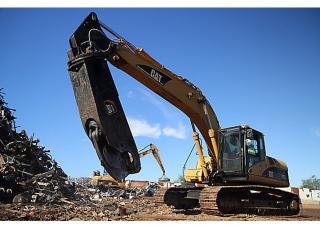

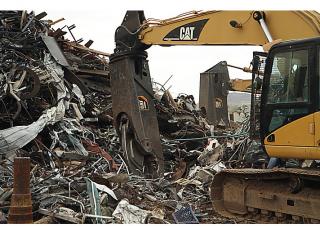

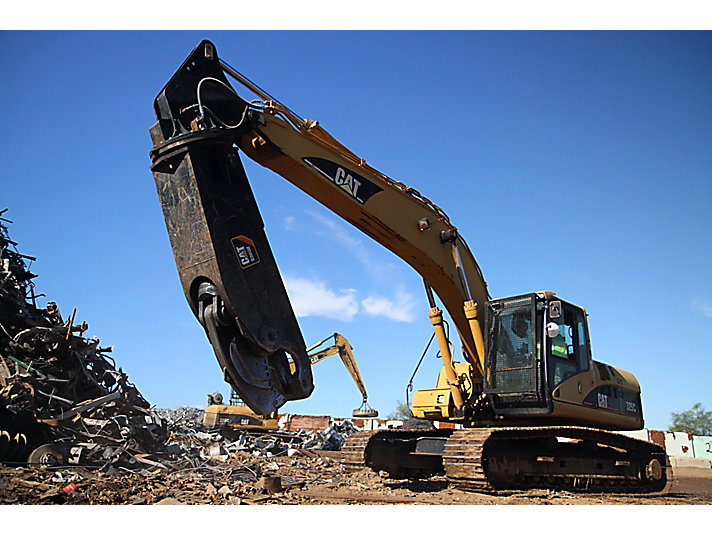

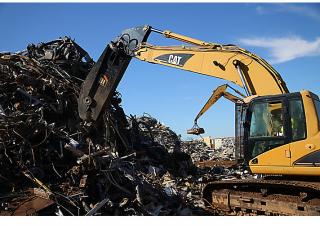

Name: Caterpillar S3070 Steel scrap cutters
Brand: Caterpillar

Operating weight: 6.92t – Carrying device: 70-92t – Opening: 819mm – Wrench opening depth: 755mm – Cutting force: 3880kN – Total length: 4890mm

Attachments Steel scrap cutters Caterpillar S3070

S3070

Years of manufacture: 2017—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - S3070 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Operating weight: 6.92 t

Carrying device: 70-92 t

Opening: 819 mm

Wrench opening depth: 755 mm

Cutting force: 3880 kN

Total length: 4890 mm

Total width: 1160 mm

Oil flow: 530 l/min

Model series: S

Basic model without hoselines and adapter for excavator

Special equipment

endless rotation: Yes
Piston rod protections: Yes
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar S3070 overview

Blades / Cutting Edges

Cut more, cut faster

Cutting force is designed to handle the heaviest cutting tasks. Power is optimized through the entire cutting cycle; compressing, piercing, and cutting with equal efficiency. Cutting edges are kept aligned, focusing cutting force and reducing drag, by tapered spacer plates. Industry leading cycle times for maximum production. The operator can see the cut for total control, allowing them to pick up material flat on the ground.

Rotation System

Takes a wrench, not a machine shop

The entire shear can be greased from the ground. The piercing tip is bolt-on, easily serviced, and designed to prevent bolt loosening and tip failure. Only replace what needs to be replaced – every cutting blade can be independently replaced as needed. The swivel and rotator motor are serviceable while the shear is mounted on the machine. The hub is field-serviceable and can be tightened to address loose tolerances.

Material / Usage

Tougher than any scrap pile

Shear body is designed with a structural safety factor (stress resistance) almost double that of some competitors. Lower and upper jaw are made with Hi Tuff steel that is work hardened, providing high strength and abrasion resistance. The solid, laminated steel jaw is stronger than typical box section designs. Additionally, the blades taper toward each other to minimize drag and wear. The cylinder rod stays protected inside the shear housing, ensuring that the cylinder endures the worst impact and pressure spikes with a 2:1 pressure safety margin. Furthermore, key components have a 4:1 margin.
