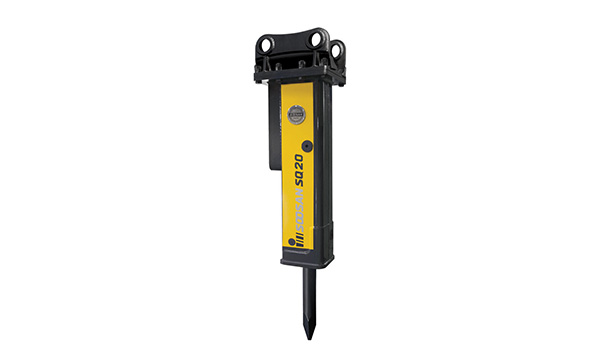

SQ20 Soosan SQ20 Specifications & Technical Data (2019—2026)

Weight: 130kg – No. of Blows: 13201/min – Carrying device: 1.2-3t – Total length: 1213mm – Tool Ø: 45mm – Oil flow: 45l/min

Attachments Hydraulic Breakers Soosan SQ20

Technical specs - SQ20 Soosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
130 kg
No. of Blows
1320 1/min
Carrying device
1.2-3 t
Total length
1213 mm
Tool Ø
45 mm
Oil flow
45 l/min
Operating pressure
120 bar
Model series
SQ

Basic model without chisel and without adapter for excavator

Special equipment

Central lubrication
No
silenced
Yes
Subaqueous equipment
No
Quick hitch mech.
No

Download datasheets (PDF)

Soosan SQ20 overview

Soosan SQ20 features overview

Advanced Power Control System

The SQ35 through SQ50 breakers are equipped with a 3 Stroke selector which is standard on the breaker. The operator can select the piston power from standard, medium or short stroke according to the job-site requirements. This higher efficiency brings a significant reduction in operating cost.
